NB6L14MMNG - onsemi

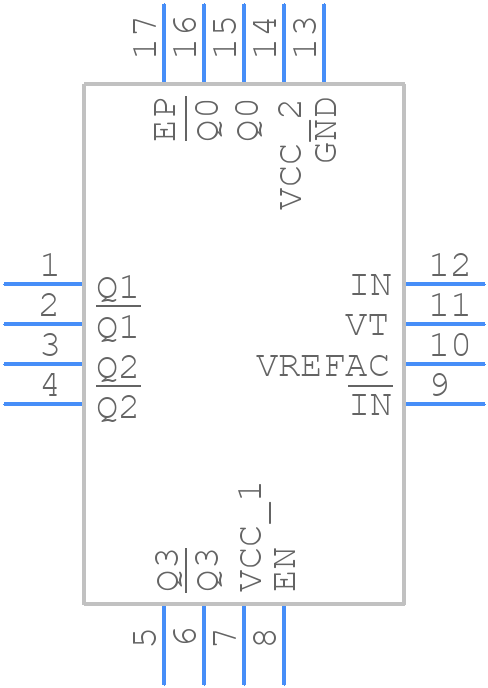

NB6L14MMNG Details

• Manufacturer Part Number:

  NB6L14MMNG

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFN16, 3x3, 0.5P

• Package Description:

  QFN-16

• Pin Count:

  16

• Manufacturer Package Code:

  485G-01

• Country Of Origin:

  Thailand

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  18 Weeks

• Manufacturer:

  onsemi

• YTEOL:

  6.05

• Additional Feature:

  IT ALSO OPERATES WITH 3.3V SUPPLY

• Family:

  6L

• Input Conditioning:

  DIFFERENTIAL

• JESD-30 Code:

  S-PQCC-N16

• Length:

  3 mm

• Logic IC Type:

  LOW SKEW CLOCK DRIVER

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  16

• Number of True Outputs:

  4

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC16,.12SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Prop. Delay@Nom-Sup:

  0.48 ns

• Propagation Delay (tpd):

  0.48 ns

• Qualification Status:

  Not Qualified

• Same Edge Skew-Max (tskwd):

  0.08 ns

• Seated Height-Max:

  1 mm

• Supply Voltage-Max (Vsup):

  3.63 V

• Supply Voltage-Min (Vsup):

  2.375 V

• Supply Voltage-Nom (Vsup):

  2.5 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Gold/Palladium (Ni/Au/Pd)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3 mm
