5 X 5 MM, 1 MM HEIGHT, 0.50 MM PITCH, LEAD FREE, QFN-32
Pin Count:
32
Manufacturer Package Code:
488AM
HTS Code:
8542.39.00.60
Factory Lead Time:
2 Days
Manufacturer:
onsemi
YTEOL:
0
Additional Feature:
ALSO OPERATES AT 3.3 V
Family:
6L
Input Conditioning:
DIFFERENTIAL MUX
JESD-30 Code:
S-XQCC-N32
JESD-609 Code:
e3
Length:
5 mm
Logic IC Type:
LOW SKEW CLOCK DRIVER
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
32
Number of True Outputs:
2
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Equivalence Code:
LCC32,.2SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Power Supply Current-Max (ICC):
150 mA
Prop. Delay@Nom-Sup:
10 ns
Propagation Delay (tpd):
0.25 ns
Qualification Status:
Not Qualified
Same Edge Skew-Max (tskwd):
0.015 ns
Seated Height-Max:
1 mm
Supply Voltage-Max (Vsup):
2.625 V
Supply Voltage-Min (Vsup):
2.375 V
Supply Voltage-Nom (Vsup):
2.5 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Tin (Sn)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
5 mm
fmax-Min:
5000 MHz
NB6LQ572MMNG Frequently Asked Questions (FAQs)
A good PCB layout for the NB6LQ572MMNG should consider signal integrity, power integrity, and thermal management. Keep the signal traces short and away from noise sources, use a solid ground plane, and ensure good thermal conduction to the heat sink or PCB.
To ensure proper biasing, follow the recommended voltage and current settings in the datasheet. Use a stable voltage source, and consider using a voltage regulator or LDO to regulate the supply voltage. Also, ensure the input and output terminations are correct to prevent signal reflections.
The NB6LQ572MMNG has a high power dissipation, so thermal management is crucial. Use a heat sink with a thermal conductivity of at least 1 W/m-K, and ensure good thermal contact between the device and heat sink. Also, consider using thermal vias and thermal pads on the PCB to improve heat dissipation.
To troubleshoot issues with the NB6LQ572MMNG, start by checking the PCB layout, power supply, and biasing. Ensure the device is properly terminated, and the input and output signals are within the recommended specifications. Use oscilloscopes and spectrum analyzers to identify any signal integrity issues or oscillations.
Yes, the NB6LQ572MMNG is sensitive to electrostatic discharge (ESD). Use ESD protection devices, such as TVS diodes or ESD protection arrays, on the input and output pins to prevent damage from ESD events. Also, follow proper handling and storage procedures to prevent ESD damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NB6LQ572MMNG Overview

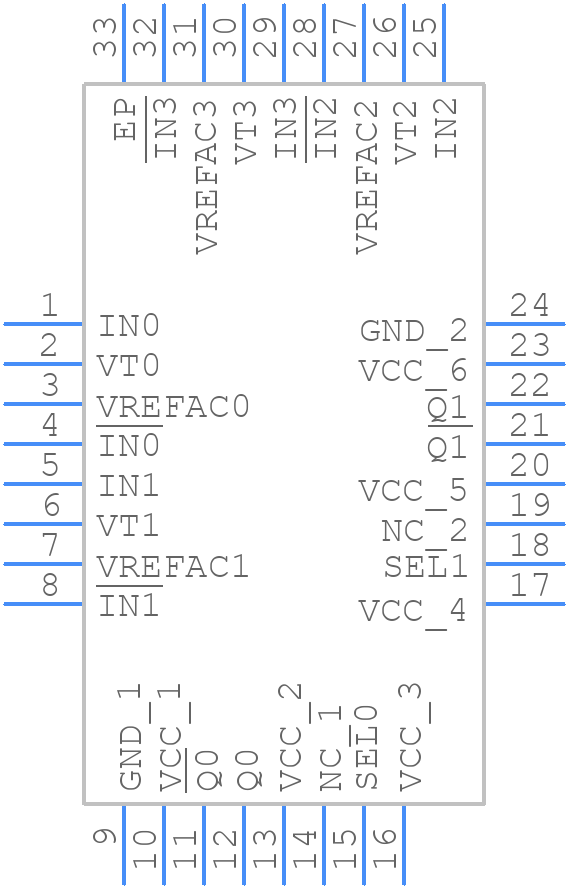

Use the download button to access the NB6LQ572MMNG schematic symbol, PCB footprint, and 3D model.
