5 X 5 MM, 1 MM HEIGHT, 0.50 MM PITCH, LEAD FREE, QFN-32
Pin Count:
32
Manufacturer Package Code:
488AM
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
4 Weeks
Manufacturer:
onsemi
YTEOL:
0
Additional Feature:
IT ALSO OPERATES AT 3.3 V
Delay-Max:
10 ns
Input Characteristics:
DIFFERENTIAL
Interface IC Type:
PECL TO LVPECL TRANSCEIVER
JESD-30 Code:
S-XQCC-N32
JESD-609 Code:
e3
Length:
5 mm
Moisture Sensitivity Level:
1
Number of Bits:
4
Number of Functions:
1
Number of Terminals:
32
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Latch or Register:
NONE
Output Polarity:
COMPLEMENTARY
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1 mm
Supply Current-Max:
110 mA
Supply Voltage-Max:
2.625 V
Supply Voltage-Min:
2.375 V
Supply Voltage-Nom:
2.5 V
Supply Voltage1-Max:
3.6 V
Supply Voltage1-Min:
3 V
Supply Voltage1-Nom:
3.3 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Tin (Sn)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
5 mm
NB6LQ572MNG Frequently Asked Questions (FAQs)
A good PCB layout for the NB6LQ572MNG should prioritize signal integrity, minimize parasitic inductance, and ensure proper power supply decoupling. Use a 4-layer PCB with a solid ground plane, and place the device close to the power supply. Keep the signal traces short and away from the power supply lines. Refer to onsemi's application notes and layout guidelines for more information.
To ensure the NB6LQ572MNG operates within its recommended operating conditions, monitor the device's junction temperature (TJ) and keep it below the maximum rating of 150°C. Also, ensure the power supply voltage (VCC) is within the recommended range of 2.5V to 3.6V, and the input signals are within the specified voltage levels. Use thermal management techniques, such as heat sinks or thermal pads, if necessary.
The NB6LQ572MNG is a high-speed differential receiver capable of operating at data transfer rates up to 6.25 Gbps. However, the actual data transfer rate depends on the system design, PCB layout, and signal quality. To achieve the maximum data transfer rate, ensure the signal integrity is maintained, and the device is operated within its recommended specifications.
To troubleshoot issues with the NB6LQ572MNG, start by reviewing the device's datasheet and application notes. Check the PCB layout, signal integrity, and power supply quality. Use oscilloscopes or signal analyzers to monitor the signal waveforms and identify any anomalies. Verify that the device is operated within its recommended specifications, and consult onsemi's technical support resources or application notes for guidance.
Yes, the NB6LQ572MNG is a sensitive device and requires proper ESD protection measures to prevent damage. Use ESD-safe handling and storage procedures, and ensure the device is properly grounded during assembly. Implement ESD protection circuits, such as TVS diodes or ESD protection arrays, in the system design to protect the device from electrostatic discharge.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NB6LQ572MNG Overview

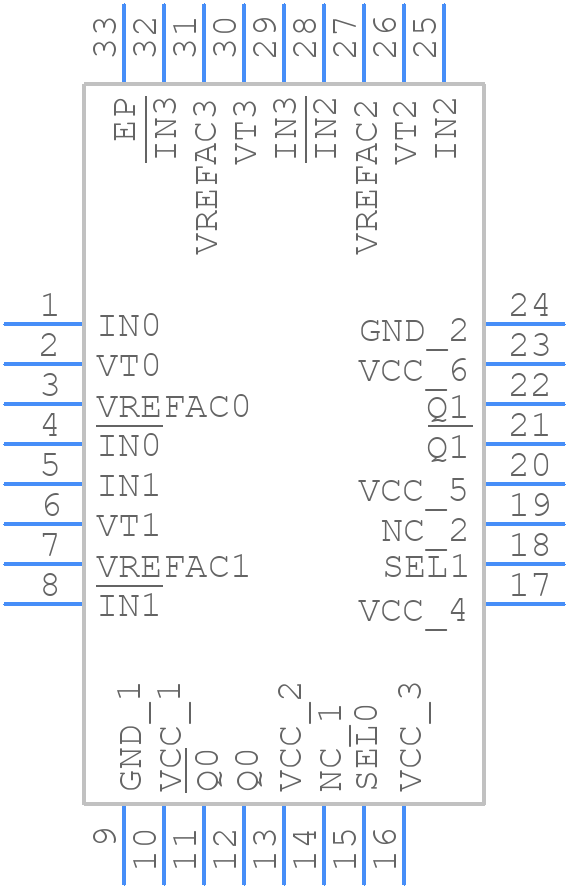

Use the download button to access the NB6LQ572MNG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NB6LQ,
or try a keyword search, such as Level Translators
