NB6N14SMNG - onsemi

Description: Maximum Input Clock Frequency > 2.0 GHz; Maximum Input Data Rate > 2.5 Gb/s; 1 ps Maximum RMS Clock Jitter; Typically 10 ps of Data Dependent Jitter; 380 ps Typical Propagation Delay; 120 ps Typical Rise and Fall Times; Pb-Free

Download NB6N14SMNG Model

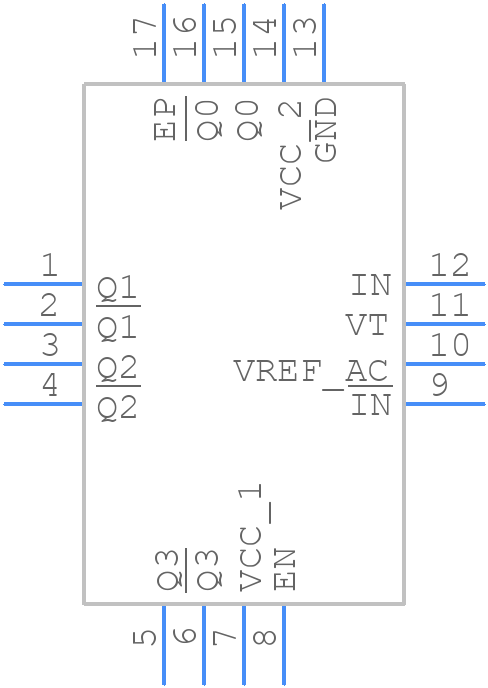

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NB6N14SMNG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16 PIN QFN
click to zoom
3D Models
NB6N14SMNG - onsemi  - 3D model - Quad Flat No-Lead - 16 PIN QFN
click to zoom

NB6N14SMNG Details

  • Manufacturer Part Number:

    NB6N14SMNG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN16, 3x3, 0.5P

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    485G-01

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    42 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.05

  • Family:

    6N

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    3 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    100 mA

  • Prop. Delay@Nom-Sup:

    0.6 ns

  • Propagation Delay (tpd):

    0.6 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.02 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

  • fmax-Min:

    2000 MHz

NB6N14SMNG Frequently Asked Questions (FAQs)

  • A good PCB layout for the NB6N14SMNG involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure proper biasing, the NB6N14SMNG requires a bias voltage of 2.5V to 5.5V on the VCC pin, and a bias current of 10mA to 20mA. The bias voltage should be decoupled with a 10uF capacitor to ensure stability.
  • The NB6N14SMNG is designed to operate up to 1.5GHz, but the actual operating frequency may vary depending on the specific application and PCB layout. It's recommended to consult the datasheet and application notes for more information.
  • The NB6N14SMNG has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to keep the device temperature below 125°C. This can be achieved by using a heat sink, improving air flow, and reducing power consumption.
  • The NB6N14SMNG has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. The device can withstand ESD voltages up to 2kV according to the Human Body Model (HBM).
