NB7L1008MMNG - onsemi

Description: Input Data Rate > 12 Gb/s Typical; Data Dependent Jitter < 20 ps; Maximum Input Clock Frequency > 8 GHz Typical; Random Clock Jitter < 0.8 ps RMS; Low Skew 1:8 CML Outputs, < 25 ps max; Multi-Level Inputs, accepts LVPECL, CML, LVDS; Differential CML Outputs, 400 mV Peak-to-Peak, Typical; Operating Range: VCC = 2.375 V to 3.6 V, GND = 0 V; Internal Input Termination Resistors, 50-ohm; VREFAC Reference Output; -40C to +85C Ambient Operating TemperaturerPas

Download NB7L1008MMNG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

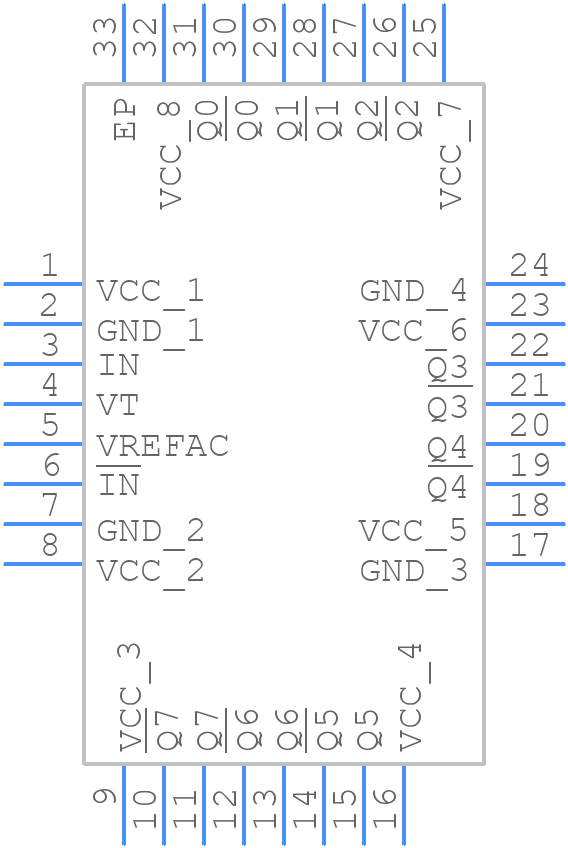

NB7L1008MMNG - onsemi - PCB symbol
click to zoom
PCB Footprints
NB7L1008MMNG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN32 5x5, 0.5P CASE 488AM ISSUE A_2023
click to zoom
3D Models
NB7L1008MMNG - onsemi - 3D model - Quad Flat No-Lead - QFN32 5x5, 0.5P CASE 488AM ISSUE A_2023
click to zoom

NB7L1008MMNG Details

  • Manufacturer Part Number:

    NB7L1008MMNG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN32, 5x5, 0.5P, 3.1x3.1EP

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    488AM

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    6.4

  • Additional Feature:

    ALSO OPERATES AT 3.3V

  • Family:

    7L

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of True Outputs:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    315 mA

  • Prop. Delay@Nom-Sup:

    0.25 ns

  • Propagation Delay (tpd):

    0.25 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.025 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    2.625 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

NB7L1008MMNG Frequently Asked Questions (FAQs)

  • A good PCB layout for the NB7L1008MMNG involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the device close to the power supply decoupling capacitors. Additionally, it's recommended to use a low-impedance power supply and to minimize the distance between the device and the load.
  • To ensure proper biasing, make sure to connect the VCC pin to a stable voltage source, and the GND pin to a solid ground plane. The input voltage (VIN) should be within the recommended range (1.8V to 3.6V), and the output voltage (VOUT) should be set to the desired level using the feedback resistors (RFBT and RFBG).
  • The NB7L1008MMNG can deliver up to 800mA of output current, but this may vary depending on the input voltage, output voltage, and ambient temperature. It's recommended to check the device's thermal performance and adjust the output current accordingly to prevent overheating.
  • To manage thermal performance, ensure good airflow around the device, and consider using a heat sink or thermal pad if the device is expected to operate at high temperatures or with high output currents. Monitor the device's junction temperature (TJ) and adjust the output current or thermal design as needed.
  • The recommended input capacitor is a 10uF ceramic capacitor with a voltage rating of 6.3V or higher, placed as close to the VIN pin as possible. The recommended output capacitor is a 10uF ceramic capacitor with a voltage rating of 6.3V or higher, placed as close to the VOUT pin as possible.
