A good PCB layout for the NB7L1008MNTXG involves keeping the input and output traces as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. It's also recommended to use a low-impedance power supply and to minimize the number of vias and layer transitions.
To ensure proper powering and decoupling of the NB7L1008MNTXG, use a low-ESR capacitor (e.g., 0.1 μF) connected between the VCC pin and the GND pin, and place it as close to the device as possible. Additionally, use a 10 μF or larger capacitor connected between the VCC pin and the GND pin, and place it near the power supply.
The NB7L1008MNTXG has an operating temperature range of -40°C to 125°C. However, it's recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance and reliability.
To handle ESD protection for the NB7L1008MNTXG, use ESD protection devices such as TVS diodes or ESD arrays on the input and output lines. Additionally, follow proper handling and storage procedures to prevent ESD damage during manufacturing and assembly.
For optimal performance, the clock signal should have a rise time of less than 1 ns, a fall time of less than 1 ns, and a clock frequency of up to 10 GHz. The clock signal should also be free of noise and jitter.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NB7L1008MNTXG Overview

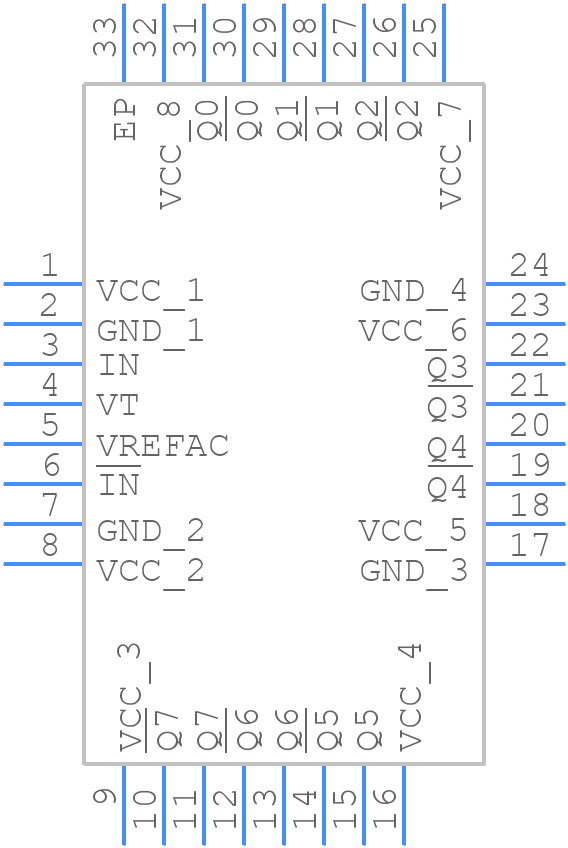

Use the download button to access the NB7L1008MNTXG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NB7L1,
or try a keyword search, such as Clock Drivers
