NB7L14MN1TWG - onsemi

Description: Maximum Input Clock Frequnecy up to 7 GHz Typical; Maximum Input Data Rate up to 10 Gb/s Typical; < 0.8 ps of RMS Clock Jitter; < 15 ps of Data Dependent Jitter; 45 ps Typical Rise and Fall Times; 165 ps Typical Propogation Delay; 3 ps Typical Within Device Skew; Operating Range: VCC = 2.375 V to 3.6 V; LVPECL Output Level, 720 mV Peak-to-Peak; 50-ohm Internal Input Termination Resistors; Functionally Compatible with Existing 2.5 V / 3.3 V LVEL, LVEP, EP, and SG devices

Download NB7L14MN1TWG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

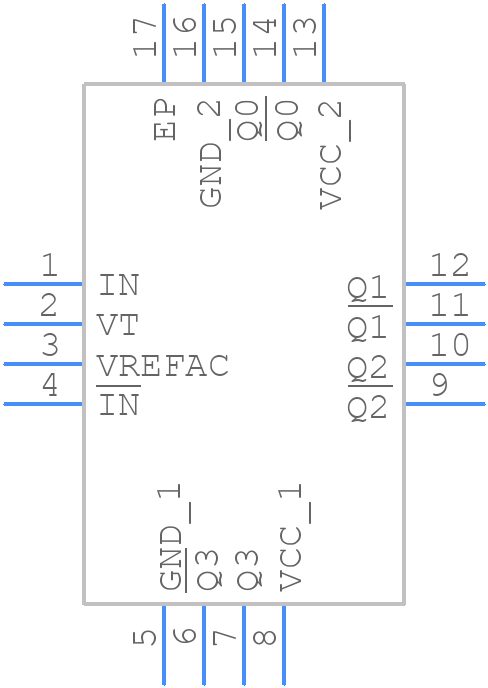

NB7L14MN1TWG - onsemi - PCB symbol
click to zoom
PCB Footprints
NB7L14MN1TWG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN16 3x3, 0.5P CASE 485AE ISSUE C
click to zoom
3D Models
NB7L14MN1TWG - onsemi - 3D model - Quad Flat No-Lead - QFN16 3x3, 0.5P CASE 485AE ISSUE C
click to zoom

NB7L14MN1TWG Details

  • Manufacturer Part Number:

    NB7L14MN1TWG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN-16

  • Package Description:

    QFN-16

  • Manufacturer Package Code:

    485AE

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    7.25

  • Additional Feature:

    ALSO OPERATES AT 3 TO 3.6 V SUPPLY

  • Family:

    NB7

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of True Outputs:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    105 mA

  • Prop. Delay@Nom-Sup:

    0.2 ns

  • Propagation Delay (tpd):

    0.2 ns

  • Same Edge Skew-Max (tskwd):

    0.05 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    2.625 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

  • fmax-Min:

    7000 MHz

NB7L14MN1TWG Frequently Asked Questions (FAQs)

  • A good PCB layout for NB7L14MN1TWG involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure proper biasing, connect the VCC pin to a stable 3.3V power supply, and the GND pin to a solid ground plane. The input signal should be AC-coupled to the device, and the output should be terminated with a 50Ω load to ensure proper impedance matching.
  • The NB7L14MN1TWG is rated for operation from -40°C to 125°C, but it's recommended to operate within the -20°C to 85°C range for optimal performance and reliability.
  • Yes, the NB7L14MN1TWG is a radiation-hardened device that meets the requirements for high-reliability and aerospace applications. However, it's essential to follow the recommended design and testing guidelines to ensure compliance with relevant standards and regulations.
  • To troubleshoot issues with NB7L14MN1TWG, start by verifying the PCB layout and ensuring that the device is properly biased. Check for any signs of overheating, and verify that the input and output signals are within the recommended specifications. Use a spectrum analyzer or oscilloscope to identify any unwanted oscillations or noise, and consult the datasheet and application notes for guidance on troubleshooting and optimization.
