A good PCB layout for the NB7L14MNHTBG should minimize signal trace lengths, use a solid ground plane, and keep the input and output traces separate to reduce noise and crosstalk. Additionally, place the device close to the power supply and use decoupling capacitors to filter out noise.
To ensure proper biasing, connect the VCC pin to a stable 3.3V or 5V power supply, and the GND pin to a solid ground plane. The input pins (IN+, IN-) should be biased to a voltage within the common-mode input range (typically 0.5V to 3.5V) to ensure proper operation.
The maximum allowable input voltage swing for the NB7L14MNHTBG is typically 2.5Vpp (peak-to-peak) for a 3.3V supply and 5Vpp for a 5V supply. Exceeding this limit may cause the device to malfunction or be damaged.
To protect the NB7L14MNHTBG from electrostatic discharge (ESD), use ESD-sensitive handling procedures, such as grounding yourself before handling the device, using an ESD wrist strap, and storing the device in an ESD-protective package. Additionally, consider adding external ESD protection devices, such as TVS diodes, to the PCB design.
To manage thermal performance, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the airflow around the device. The NB7L14MNHTBG has a thermal pad on the bottom, which should be connected to a solid ground plane to help dissipate heat.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
NB7L14MNHTBG Overview

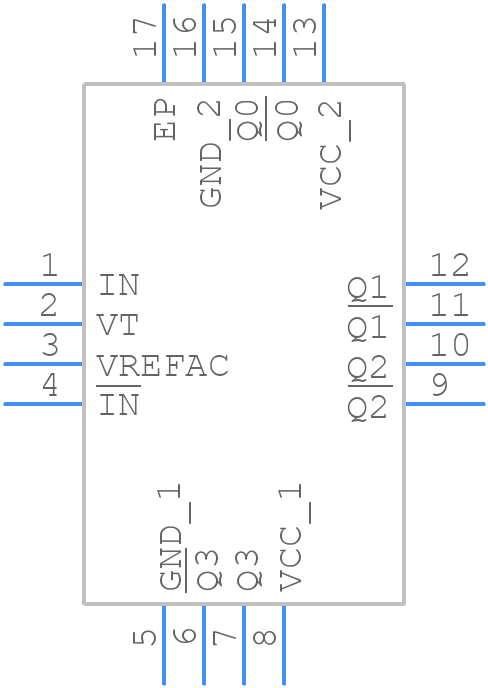

Use the download button to access the NB7L14MNHTBG schematic symbol, PCB footprint, and 3D model.
