A good PCB layout for the NB7L572MNG involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the decoupling capacitors close to the device. It's also recommended to use a low-ESR capacitor for the output filter.
The output filter components should be chosen based on the desired output impedance, frequency response, and attenuation requirements. A good starting point is to use the recommended values in the datasheet, and then adjust them based on the specific application requirements.
The maximum power dissipation of the NB7L572MNG is dependent on the operating conditions, but it's typically around 1.5W. To ensure it doesn't overheat, make sure to provide adequate heat sinking, use a thermally conductive PCB material, and keep the device away from other heat sources.
The NB7L572MNG is rated for operation up to 125°C, but its performance may degrade at higher temperatures. If you need to operate the device in a high-temperature environment, make sure to derate the power dissipation and consider using a heat sink or other cooling measures.
To troubleshoot issues with the NB7L572MNG, start by checking the PCB layout and component values, ensuring that they match the recommended values in the datasheet. Then, use a scope to measure the input and output waveforms, and check for any signs of oscillation or instability. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NB7L572MNG Overview

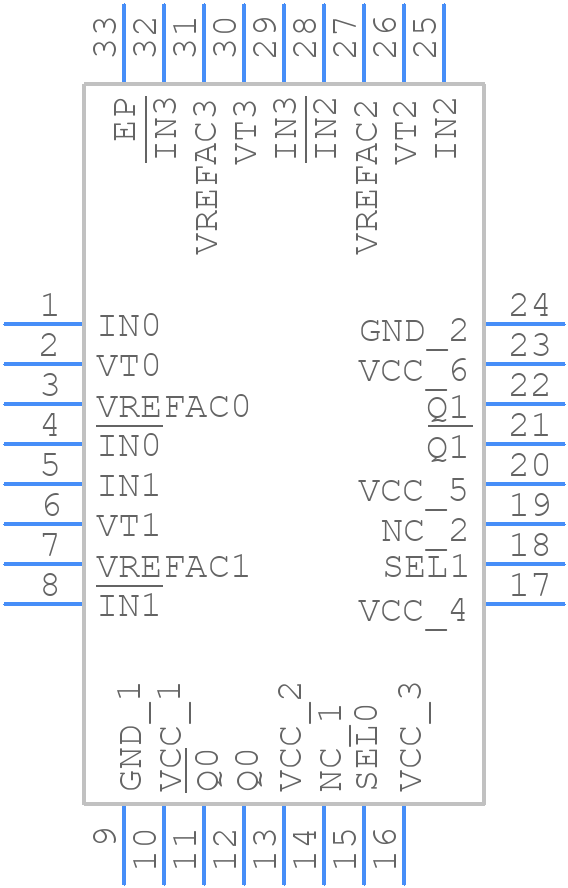

Use the download button to access the NB7L572MNG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NB7L5,
or try a keyword search, such as Clock Drivers
