A good PCB layout for the NB7NPQ1004MMTTWG should prioritize signal integrity, minimize noise, and ensure proper power supply decoupling. A 4-layer PCB with a solid ground plane, separate power planes, and controlled impedance traces is recommended. Additionally, place decoupling capacitors close to the device and use a common mode filter to reduce EMI.
To ensure proper biasing, connect the VCC pin to a stable 3.3V power supply, and the VEE pin to a stable -3.3V power supply. The input common-mode voltage should be set to around 1.2V, and the output common-mode voltage should be set to around 1.2V or 2.5V, depending on the application. Additionally, ensure that the input and output signals are properly terminated and matched to the device's input and output impedance.
The NB7NPQ1004MMTTWG is rated for operation from -40°C to 125°C. However, it's essential to note that the device's performance may degrade at extreme temperatures, and the maximum operating temperature range may vary depending on the specific application and environmental conditions.
The NB7NPQ1004MMTTWG has built-in ESD protection, but it's still essential to follow proper handling and assembly procedures to prevent ESD damage. Use an ESD wrist strap or mat, handle the device by the package rather than the pins, and avoid touching the pins or exposed die. Additionally, ensure that the PCB design includes ESD protection components, such as TVS diodes or ESD arrays, to protect the device from external ESD events.
The recommended input termination for the NB7NPQ1004MMTTWG is 50Ω, and the recommended output termination is 50Ω or 75Ω, depending on the specific application and transmission line impedance. Proper termination is critical to ensure signal integrity, minimize reflections, and optimize the device's performance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NB7NPQ1004MMTTWG Overview

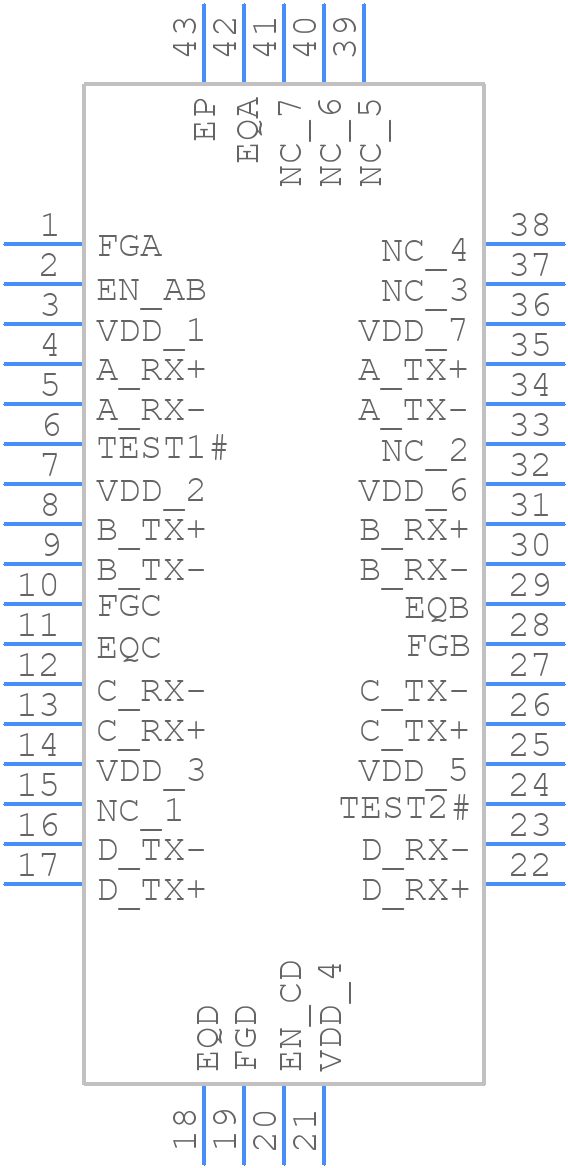

Use the download button to access the NB7NPQ1004MMTTWG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NB7NP,
or try a keyword search, such as Line Driver or Receivers
