NB7V52MMNHTBG - onsemi

Description: Maximum Input Clock Frequency > 10GHz Typical; Random Clock Jitter < 0.8ps RMS; 30ps Typical Rise and Fall Times ; Differential CML Outputs, 400mV peak-to-peak, typical; Operating Range: VCC = 1.71V to 2.625V with VEE = 0V; Internal 50-ohm Input Termination Resistors; -40C to +85C Ambient Operating Temperature; Instrumentation

Download NB7V52MMNHTBG Model

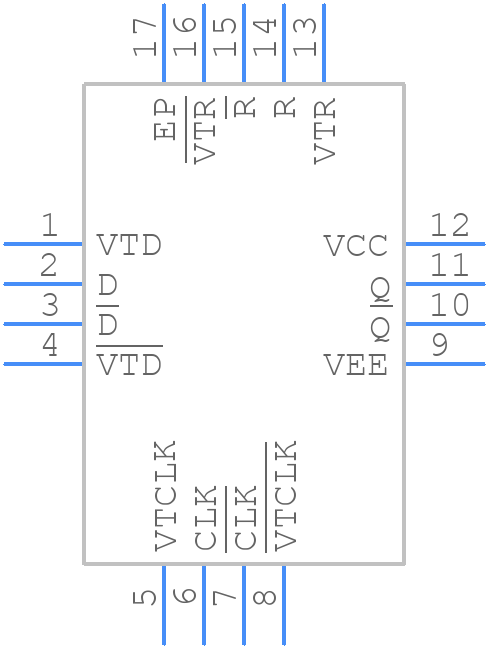

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NB7V52MMNHTBG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN16 3x3, 0.5P
click to zoom
3D Models
NB7V52MMNHTBG - onsemi  - 3D model - Quad Flat No-Lead - QFN16 3x3, 0.5P
click to zoom

NB7V52MMNHTBG Details

  • Manufacturer Part Number:

    NB7V52MMNHTBG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN16, 3x3, 0.5P

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    485G-01

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    4.5

  • Family:

    ECL

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-PQCC-N16

  • Length:

    3 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Max Frequency@Nom-Sup:

    10000000000 Hz

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    0.35 ns

  • Propagation Delay (tpd):

    0.6 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    2.625 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Surface Mount:

    YES

  • Technology:

    ECL

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Gold/Palladium (Ni/Au/Pd)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    3 mm

  • fmax-Min:

    10000 MHz

NB7V52MMNHTBG Frequently Asked Questions (FAQs)

  • A good PCB layout for the NB7V52MMNHTBG involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source, and decouple it with a 0.1uF capacitor to ground. The input voltage should be within the recommended range, and the output should be terminated with a 50ohm load to ensure optimal performance.
  • The NB7V52MMNHTBG can operate over a temperature range of -40°C to 125°C. However, it's recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance and reliability.
  • The NB7V52MMNHTBG has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that all equipment is grounded to prevent static discharge.
  • Store the NB7V52MMNHTBG in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is -40°C to 125°C, and the relative humidity should be below 60%.
