A good PCB layout for the NB7V586MMNG should prioritize signal integrity, minimize noise, and ensure proper power supply decoupling. Keep the input and output traces short, use a solid ground plane, and place decoupling capacitors close to the device. Refer to onsemi's application notes and layout guidelines for more information.
The output termination of the NB7V586MMNG depends on the specific application requirements. For example, if you're driving a transmission line, use a series termination resistor (Rs) to match the line impedance. For point-to-point connections, use a parallel termination resistor (Rp) and capacitor (Cp) to reduce reflections. Consult the datasheet and onsemi's application notes for guidance on selecting the right termination scheme.
The NB7V586MMNG is rated for operation from -40°C to 125°C (junction temperature). However, the device's performance and reliability may degrade at extreme temperatures. Ensure proper thermal management and consider derating the device's performance at high temperatures.
To prevent damage or latch-up, ensure that the power supplies (VCC and VEE) are ramped up and down slowly and monotonically. The recommended power-up sequence is VEE first, then VCC, and the reverse for power-down. Consult the datasheet and onsemi's application notes for more information on power sequencing.
The NB7V586MMNG is designed for LVPECL (Low-Voltage Positive Emitter-Coupled Logic) inputs and outputs. The recommended input signal levels are 100 mV to 1.3 V, and the output signal levels are 100 mV to 1.3 V peak-to-peak. Ensure that the input and output signals are within these ranges to maintain proper device operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NB7V586MMNG Overview

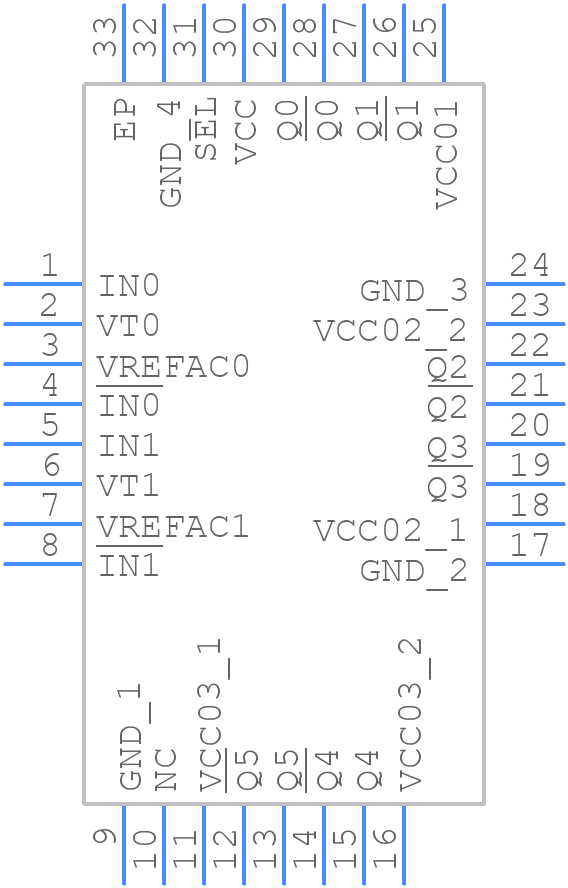

Use the download button to access the NB7V586MMNG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NB7V5,
or try a keyword search, such as Clock Drivers
