A good PCB layout for the NB7VPQ16MMNG should consider signal integrity, power integrity, and thermal management. Keep the signal traces short and away from noise sources, use a solid ground plane, and ensure proper decoupling. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
The NB7VPQ16MMNG has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. Use a thermal interface material (TIM) between the device and the heat sink, and ensure good airflow around the device. A heat sink with a thermal resistance of 10°C/W or lower is recommended.
The NB7VPQ16MMNG requires a 50Ω input termination to ensure proper signal integrity. Use a 50Ω resistor in series with the input signal, and consider adding a capacitor in parallel to the resistor to filter out high-frequency noise.
Yes, but with caution. The NB7VPQ16MMNG is designed for 50Ω systems, but it can be used in non-50Ω systems with proper impedance matching. Use a resistive divider or a transformer to match the impedance, and ensure the signal amplitude is within the device's specified range.
The NB7VPQ16MMNG requires a bias voltage of 3.3V or 5V, depending on the application. Ensure the bias voltage is stable and within the specified range, and use a voltage regulator or a voltage reference to generate the bias voltage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NB7VPQ16MMNG Overview

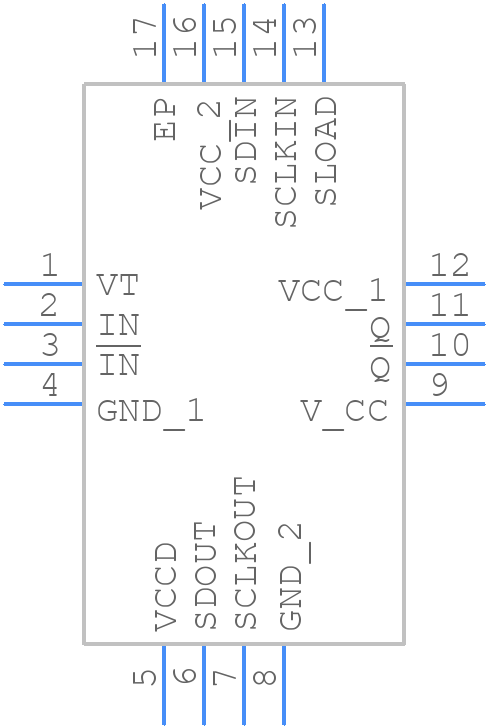

Use the download button to access the NB7VPQ16MMNG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NB7VP,
or try a keyword search, such as Line Driver or Receivers
