A good PCB layout for the NB7VPQ702MMUTXG should include a solid ground plane, short and direct traces for the clock and data signals, and decoupling capacitors placed close to the device. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure signal integrity, use controlled impedance traces, add series termination resistors for clock and data signals, and consider using a clock jitter cleaner or a signal repeater if necessary. Additionally, ensure that the PCB layout is designed to minimize electromagnetic interference (EMI) and radio-frequency interference (RFI).
The NB7VPQ702MMUTXG is rated for operation from -40°C to 125°C, but it's recommended to operate within the -20°C to 85°C range for optimal performance and reliability.
The NB7VPQ702MMUTXG requires a specific power-up sequence to ensure proper operation. Power up the VCC supply first, followed by the VCCA supply. During power-down, reverse the sequence. It's also recommended to add power-on reset (POR) circuitry to ensure a clean power-up sequence.
The recommended values for the external capacitors and resistors can be found in the application note or the evaluation board documentation. Typically, a 0.1uF decoupling capacitor is recommended for the VCC and VCCA supplies, and a 1kΩ to 10kΩ resistor is recommended for the output termination.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NB7VPQ702MMUTXG Overview

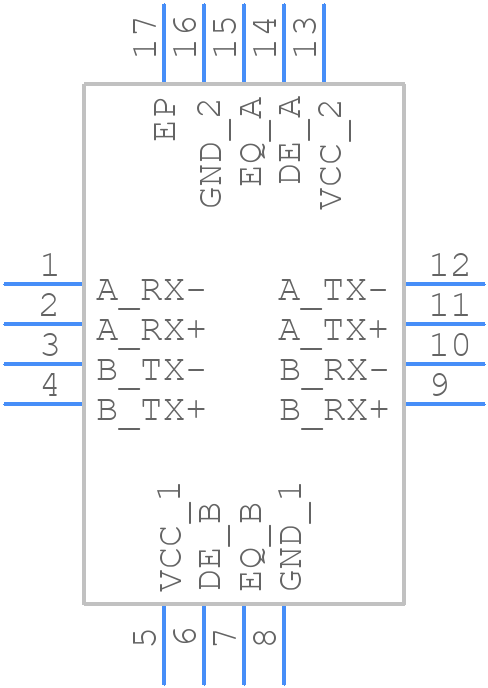

Use the download button to access the NB7VPQ702MMUTXG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NB7VP,
or try a keyword search, such as Line Driver or Receivers
