A good PCB layout for the NB7VQ572MMNG involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure proper biasing, connect the VCC pin to a stable voltage source, and decouple it with a 0.1uF capacitor to ground. The input voltage should be within the recommended range, and the output should be terminated with a 50Ω load to ensure optimal performance.
The NB7VQ572MMNG can operate up to 12.5 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout. It's recommended to consult the datasheet and application notes for more information.
The NB7VQ572MMNG has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, such as a thermal pad or a heat sink, and to keep the device within the recommended operating temperature range.
The NB7VQ572MMNG has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. It's recommended to use an ESD wrist strap or mat, and to handle the device by the body or pins, rather than the leads.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NB7VQ572MMNG Overview

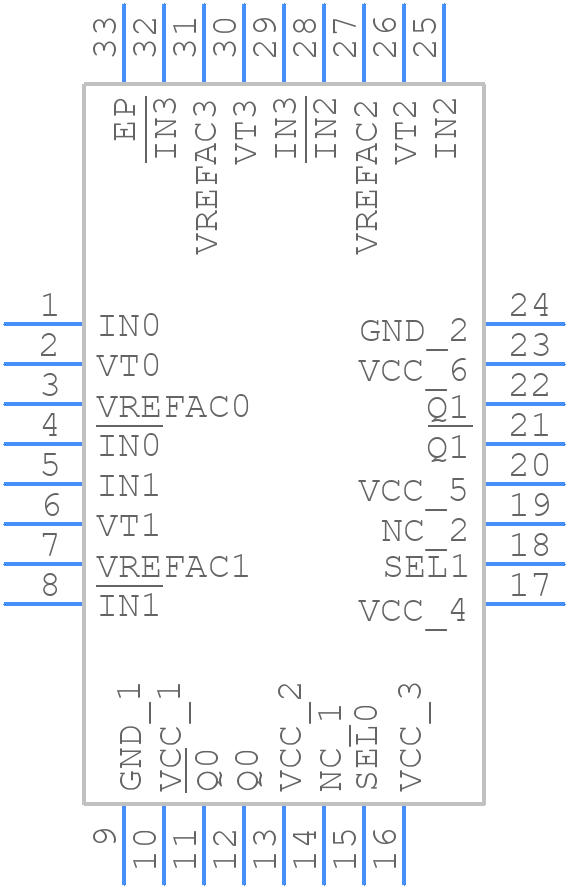

Use the download button to access the NB7VQ572MMNG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NB7VQ,
or try a keyword search, such as Multiplexer/Demultiplexers
