The recommended PCB layout involves placing the module on a 4-layer board with a solid ground plane, and using thermal vias to dissipate heat. A heat sink or thermal interface material can also be used to improve thermal management.
To ensure reliable start-up and shutdown, it is recommended to follow a soft-start sequence, with a controlled voltage ramp-up and ramp-down to prevent inrush currents and voltage spikes.
Operating the module outside of the recommended input voltage range can lead to reduced efficiency, increased heat generation, and potentially even damage to the module. It is recommended to operate within the specified input voltage range for optimal performance and reliability.
To troubleshoot common issues, check the input voltage, output load, and thermal management. Verify that the module is operated within the recommended specifications, and check for any signs of physical damage or contamination. Consult the datasheet and application notes for further guidance.
The module is designed to meet CISPR 22 and FCC Part 15 Class B emissions standards. To ensure compliance, follow proper PCB layout and shielding guidelines, and use EMI filters or shielding components as needed.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NBM2317S60D1580T0R Overview

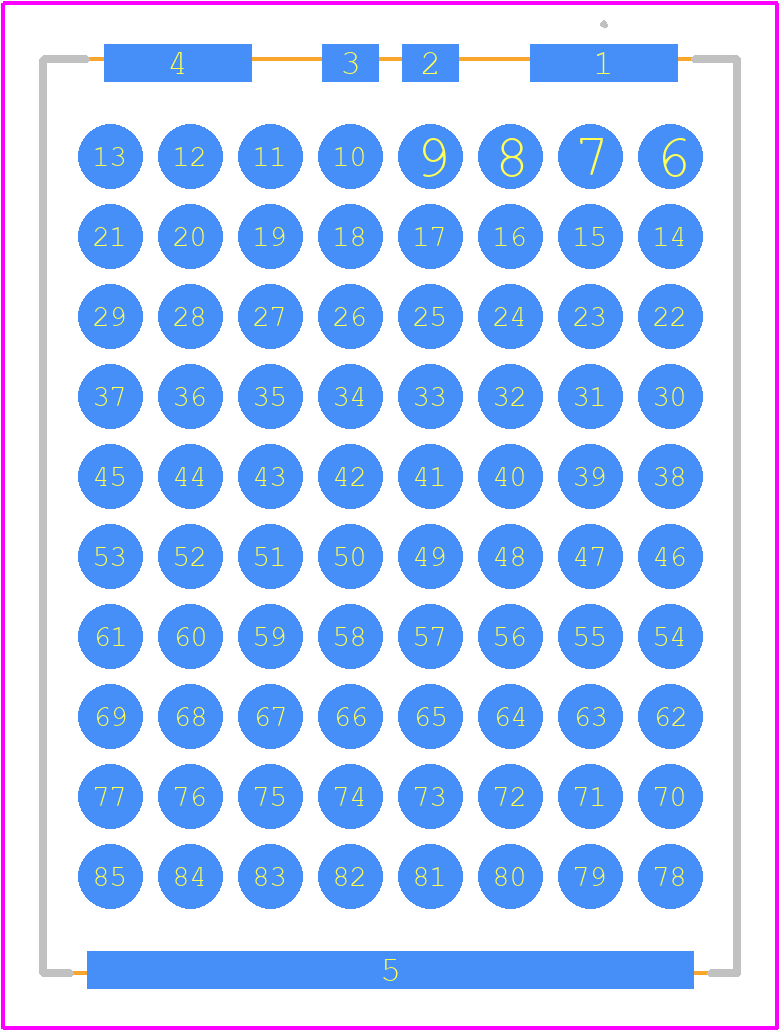

Use the download button to access the NBM2317S60D1580T0R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NBM23,
or try a keyword search, such as Power Supply Modules
