RSNECL MODE: VCC = 0 V WITH VEE = -2.375 V TO -3.465 V
Family:
14
Input Conditioning:
DIFFERENTIAL
JESD-30 Code:
S-XQCC-N16
Length:
3 mm
Logic IC Type:
LOW SKEW CLOCK DRIVER
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
16
Number of True Outputs:
4
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Characteristics:
SERIES-RESISTOR
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Equivalence Code:
LCC16,.12SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Power Supply Current-Max (ICC):
75 mA
Prop. Delay@Nom-Sup:
0.15 ns
Propagation Delay (tpd):
0.16 ns
Qualification Status:
Not Qualified
Same Edge Skew-Max (tskwd):
0.015 ns
Seated Height-Max:
1 mm
Supply Voltage-Max (Vsup):
3.465 V
Supply Voltage-Min (Vsup):
2.375 V
Supply Voltage-Nom (Vsup):
2.5 V
Surface Mount:
YES
Technology:
ECL
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Gold/Palladium (Ni/Au/Pd)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
fmax-Min:
10500 MHz
NBSG14MNG Frequently Asked Questions (FAQs)
A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern under the device.
Implement a robust thermal management system, including a heat sink, thermal interface material, and a cooling fan if necessary. Monitor the device's junction temperature and adjust the system design accordingly.
Use a shielded enclosure, keep the device away from antennas and high-frequency circuits, and ensure proper grounding and decoupling. Implement EMI filters and shielding on the PCB if necessary.
Use a low-ESR capacitor for decoupling, minimize lead inductance, and ensure a low-impedance power supply. Optimize the PCB layout for minimal parasitic inductance and capacitance.
Use a 4-wire Kelvin connection for low-current measurements. Ensure proper probe placement and a low-noise measurement environment. Calibrate the measurement equipment regularly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NBSG14MNG Overview

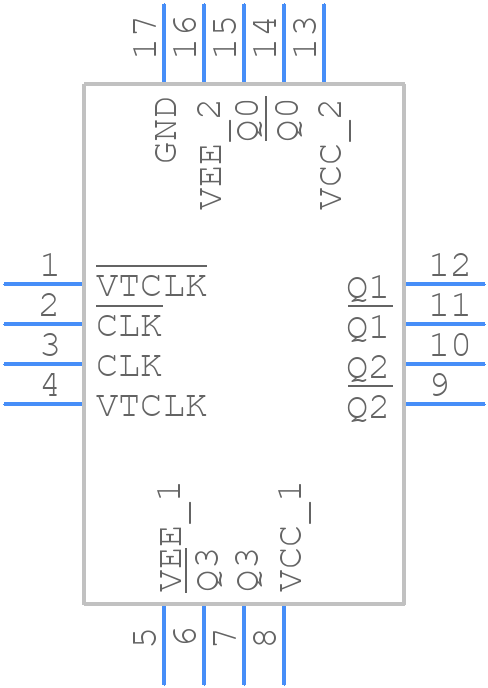

Use the download button to access the NBSG14MNG schematic symbol, PCB footprint, and 3D model.
