NC2D-JP-DC12V footprint, schematic symbol and 3D model by Panasonic

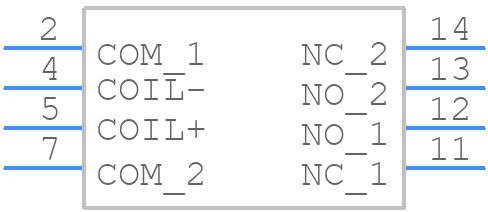

Symbol

click to zoom

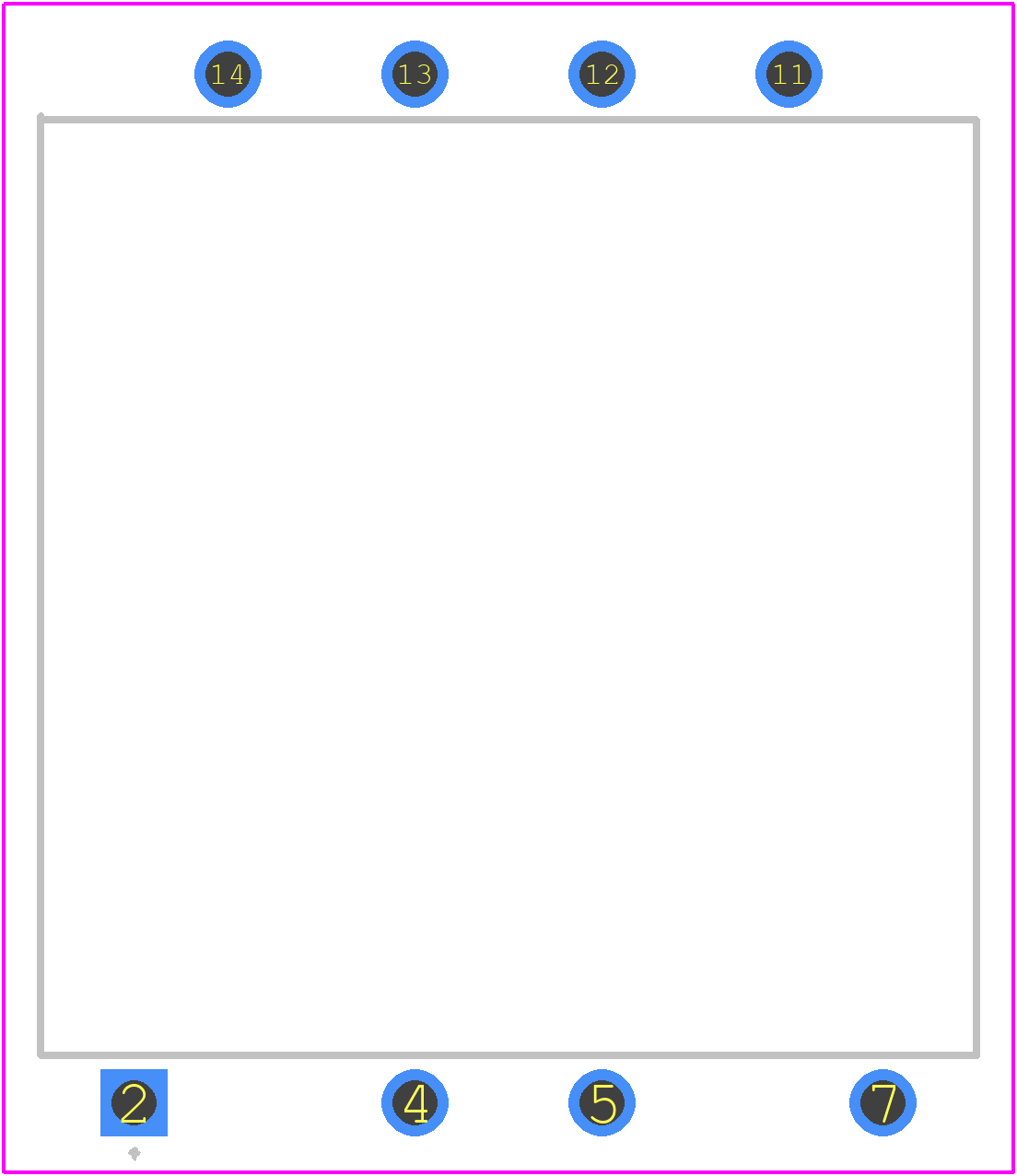

PCB Footprints

NC2D-JP-DC12V - Panasonic PCB footprint - Other - Other - NC2D-JP-DC12V-2

click to zoom

3D Models

NC2D-JP-DC12V - Panasonic - 3D model - Other - NC2D-JP-DC12V-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for NC2D-JP-DC12V
Part Number NC2D-JP-DC12V
Manufacturer Panasonic
Pin Count 8
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - NC2D-JP-DC12V-2
Released Date Jul 15, 2022
Last Modified Date Jan 21, 2026 4:45 PM UTC
Pinout / Pin List Click Here (Member Only)

NC2D-JP-DC12V Details

Manufacturer Part Number:
NC2D-JP-DC12V
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
Factory Lead Time:
16 Weeks
Manufacturer:
Panasonic Electronic Components
YTEOL:
8
Body Breadth:
25.4 mm
Body Height:
10.9 mm
Body Length or Diameter:
25.4 mm
Coil Current(DC)-Max:
0.03 A
Coil Operate Voltage(DC):
9.6 V
Coil Power:
360 mW
Coil Release Voltage(DC):
1.2 V
Coil Resistance:
400 Ω
Coil Voltage(DC)-Max:
12 V
Coil/Input Supply Type:
DC
Contact (AC) Max Rating R Load:
5A@250VAC
Contact Current(AC)-Max:
5 A
Contact Voltage(AC)-Max:
250 V
Contact/Output Supply Type:
AC
Electrical Life:
100000 Cycle(s)
Mounting Feature:
THROUGH HOLE-STRAIGHT
Operate Time:
20 ms
Operating Temperature-Max:
70 °C
Operating Temperature-Min:
-40 °C
Packing Method:
BOX
Physical Dimension:
25.4mm x 25.4mm x 10.9mm
Reference Standard:
CSA; UL
Relay Action:
MOMENTARY
Relay Function:
DPDT
Relay Type:
POWER/SIGNAL RELAY
Release Time:
10 ms
Surface Mount:
NO
Termination Type:
SOLDER

NC2D-JP-DC12V Frequently Asked Questions (FAQs)

The maximum switching frequency of the NC2D-JP-DC12V relay is 20 Hz. However, it's recommended to consult with Panasonic's application engineers to determine the suitable switching frequency for your specific application.
The NC2D-JP-DC12V relay is rated for operation up to 85°C. However, the relay's performance and lifespan may be affected at high temperatures. It's recommended to derate the relay's current capacity and consult with Panasonic's application engineers for high-temperature applications.
The NC2D-JP-DC12V relay does not have a minimum load requirement. However, it's recommended to ensure that the load is within the relay's rated current capacity to prevent overheating and ensure reliable operation.
The NC2D-JP-DC12V relay is designed to withstand moderate vibration levels. However, it's recommended to consult with Panasonic's application engineers to determine the relay's suitability for high-vibration applications.
The expected lifespan of the NC2D-JP-DC12V relay is 100,000 to 200,000 cycles, depending on the operating conditions and load. However, the relay's lifespan may be affected by factors such as temperature, humidity, and switching frequency.
