NC2D-P-DC12V footprint, schematic symbol and 3D model by Panasonic

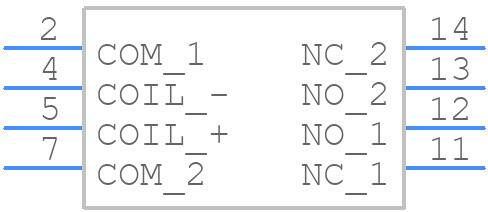

Symbol

click to zoom

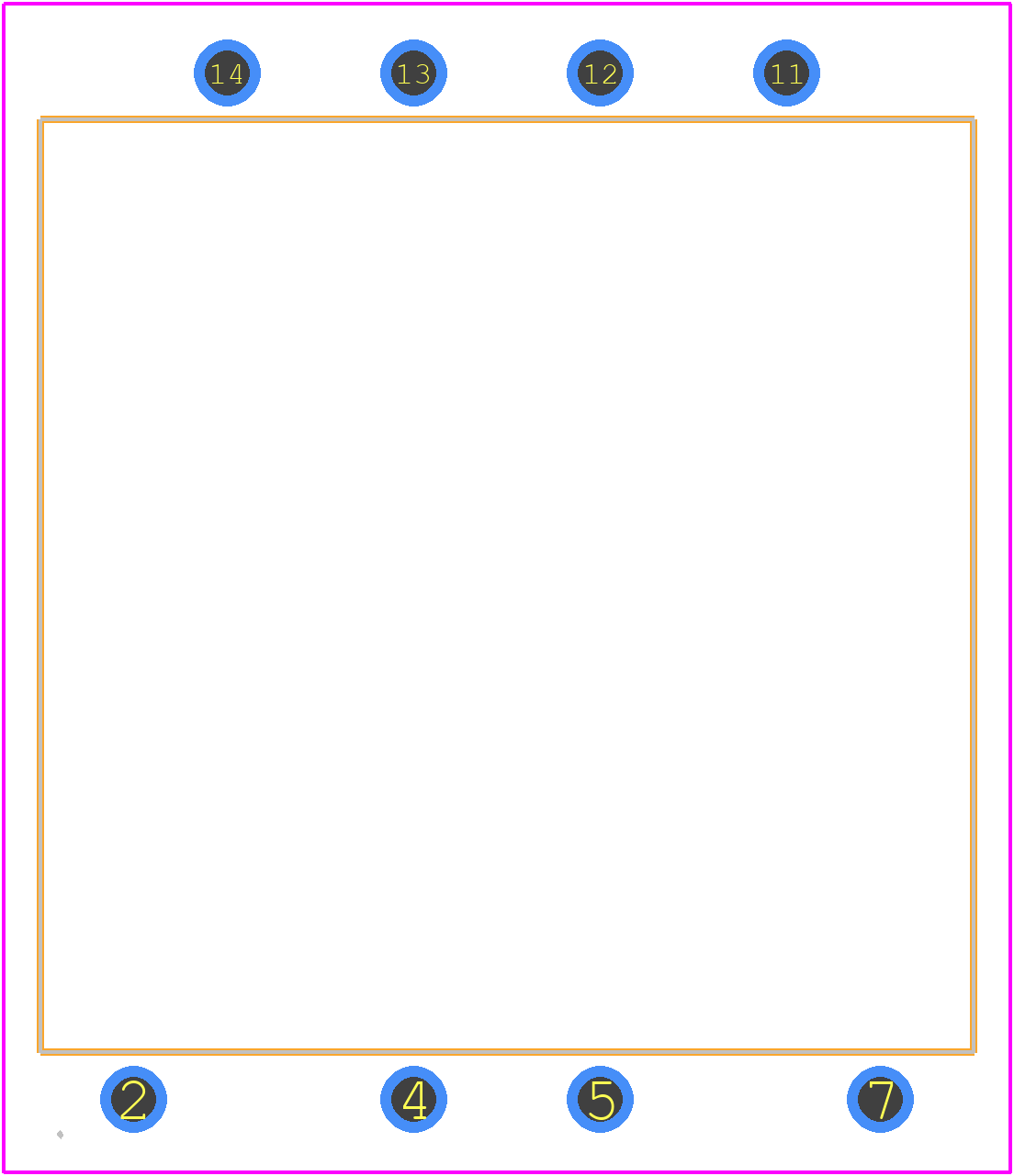

PCB Footprints

NC2D-P-DC12V - Panasonic PCB footprint - Other - Other - NC2D-P-DC12V-3

click to zoom

3D Models

NC2D-P-DC12V - Panasonic - 3D model - Other - NC2D-P-DC12V-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for NC2D-P-DC12V
Part Number NC2D-P-DC12V
Manufacturer Panasonic
Pin Count 8
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - NC2D-P-DC12V-3
Released Date Apr 21, 2020
Last Modified Date Jan 21, 2026 4:45 PM UTC
Pinout / Pin List Click Here (Member Only)

NC2D-P-DC12V Details

Manufacturer Part Number:
NC2D-P-DC12V
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
Factory Lead Time:
16 Weeks
Manufacturer:
Panasonic Electronic Components
YTEOL:
7
Body Breadth:
11.2 mm
Body Height:
27.8 mm
Body Length or Diameter:
25.4 mm
Coil Current(DC)-Max:
0.03 A
Coil Operate Voltage(DC):
9.6 V
Coil Power:
360 mW
Coil Release Voltage(DC):
1.2 V
Coil Resistance:
400 Ω
Coil Voltage(DC)-Max:
12 V
Coil/Input Supply Type:
DC
Contact (AC) Max Rating R Load:
5A@250VAC
Contact Current(AC)-Max:
5 A
Contact Voltage(AC)-Max:
250 V
Contact/Output Supply Type:
AC
Electrical Life:
100000 Cycle(s)
Mounting Feature:
THROUGH HOLE-STRAIGHT
Operate Time:
20 ms
Operating Temperature-Max:
70 °C
Operating Temperature-Min:
-40 °C
Packing Method:
BOX
Physical Dimension:
25.4mm x 11.2mm x 27.8mm
Reference Standard:
CSA; UL
Relay Action:
MOMENTARY
Relay Function:
DPDT
Relay Type:
POWER/SIGNAL RELAY
Release Time:
10 ms
Surface Mount:
NO
Termination Type:
SOLDER

NC2D-P-DC12V Frequently Asked Questions (FAQs)

The maximum switching frequency of the NC2D-P-DC12V relay is 20 Hz. However, it's recommended to consult with Panasonic's application engineers to determine the suitable switching frequency for your specific application.
The NC2D-P-DC12V relay is rated for operation up to 85°C. However, the relay's performance and lifespan may be affected at high temperatures. It's recommended to derate the relay's current capacity and consult with Panasonic's application engineers for high-temperature applications.
The recommended PCB layout and trace width for the NC2D-P-DC12V relay can be found in Panasonic's application notes and PCB layout guidelines. Generally, a minimum trace width of 1.5 mm and a spacing of 1.5 mm between the relay and other components are recommended.
The NC2D-P-DC12V relay is designed to withstand vibrations up to 10 G. However, it's recommended to consult with Panasonic's application engineers to determine the suitable vibration resistance for your specific application.
The recommended soldering profile for the NC2D-P-DC12V relay is a peak temperature of 260°C for 10 seconds. However, it's recommended to consult with Panasonic's application engineers for specific soldering profile recommendations.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

NC2D-P-DC12V Overview

Use the download button to access the NC2D-P-DC12V schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like NC2D-, or try a keyword search, such as Power/Signal Relays
