NC2D-P-DC24V - Panasonic

Description: General Purpose Relay DPDT (2 Form C) 24VDC Coil Through Hole 5 A PC Pin 250VAC 360 mW 1,600 Ω -40°C ~ 70°C

Download NC2D-P-DC24V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

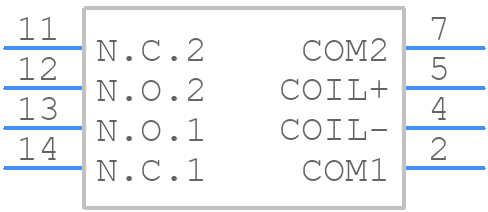

NC2D-P-DC24V - Panasonic - PCB symbol
click to zoom
PCB Footprints

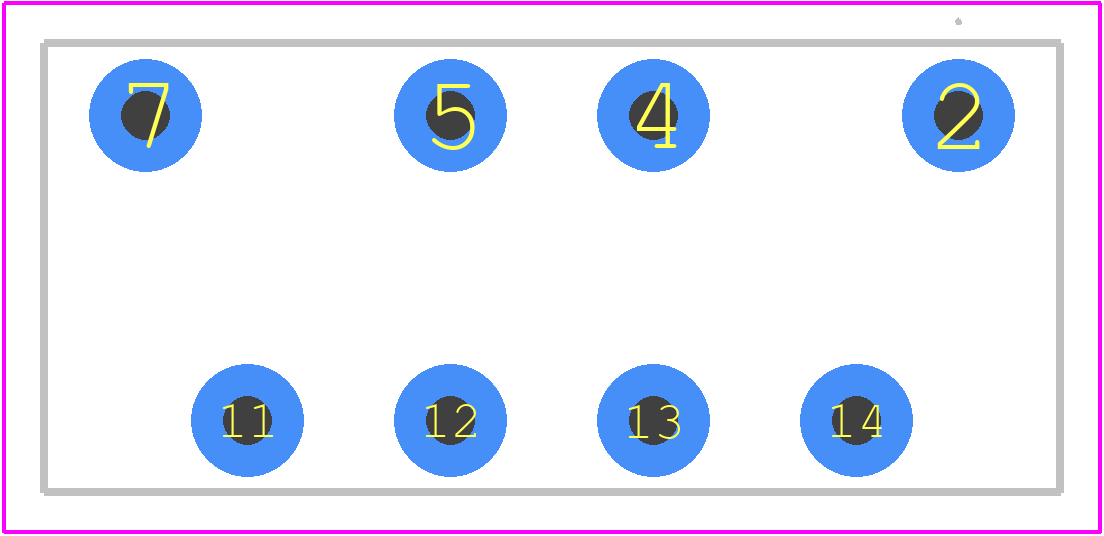

NC2D-P-DC24V - Panasonic PCB footprint - Other - Other - NC2D-P-DC24V-2
click to zoom
3D Models
NC2D-P-DC24V - Panasonic - 3D model - Other - NC2D-P-DC24V-2
click to zoom

NC2D-P-DC24V Details

  • Manufacturer Part Number:

    NC2D-P-DC24V

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Body Breadth:

    11.2 mm

  • Body Height:

    27.8 mm

  • Body Length or Diameter:

    25.4 mm

  • Coil Current(DC)-Max:

    0.015 A

  • Coil Operate Voltage(DC):

    19.2 V

  • Coil Power:

    360 mW

  • Coil Release Voltage(DC):

    2.4 V

  • Coil Resistance:

    1600 Ω

  • Coil Voltage(DC)-Max:

    24 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    5A@250VAC

  • Contact Current(AC)-Max:

    5 A

  • Contact Voltage(AC)-Max:

    250 V

  • Contact/Output Supply Type:

    AC

  • Electrical Life:

    100000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    20 ms

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX

  • Physical Dimension:

    25.4mm x 11.2mm x 27.8mm

  • Reference Standard:

    CSA; UL

  • Relay Action:

    MOMENTARY

  • Relay Function:

    DPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    10 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER
