A good PCB layout for the NC2EBD-JP-DC24V would involve keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input and output traces to reduce electromagnetic interference (EMI).
To ensure reliability in high-temperature applications, it's essential to follow the recommended derating curves, ensure good thermal management, and consider using a heat sink if necessary. Additionally, selecting components with a high temperature rating and using a reliable soldering process can help.
The NC2EBD-JP-DC24V has built-in EMI filtering, but additional filtering may be required depending on the specific application and regulatory requirements. A common-mode choke and X-capacitors can be added to the input and output stages to improve EMI performance.
Yes, the NC2EBD-JP-DC24V can be used in a redundant or parallel configuration to improve system reliability and availability. However, it's essential to ensure that the modules are properly synchronized and that the system is designed to handle the increased power and heat dissipation.
The NC2EBD-JP-DC24V is designed to meet various safety standards, including UL, CE, and IEC. However, it's essential to follow proper safety precautions during handling, installation, and operation, such as avoiding electrical shock, ensuring proper insulation, and following the recommended installation procedures.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NC2EBD-JP-DC24V Overview

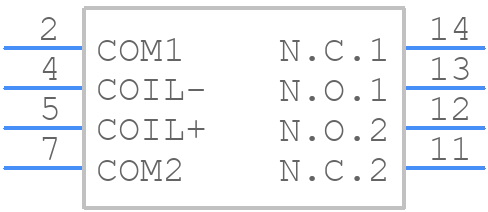

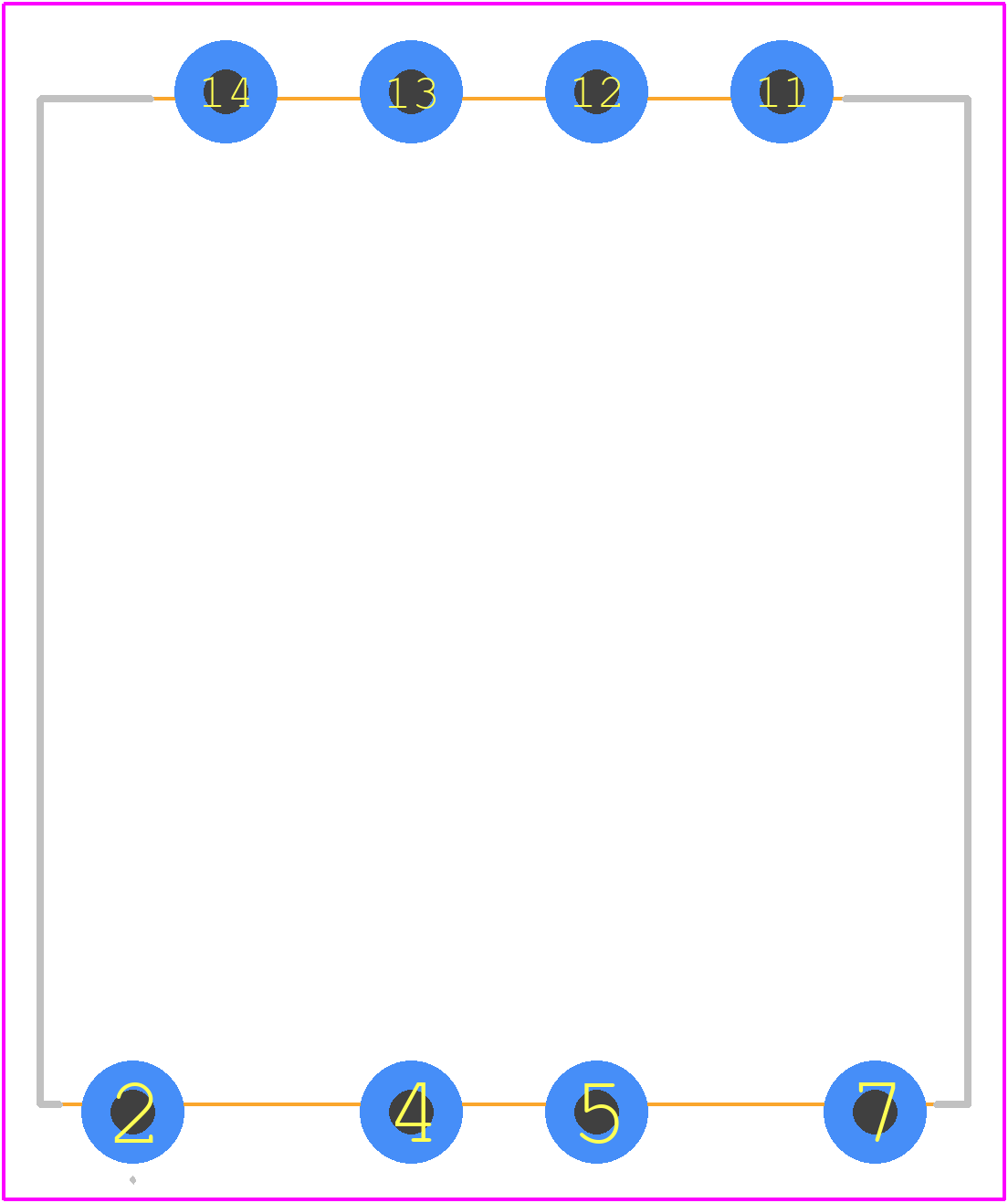

Use the download button to access the NC2EBD-JP-DC24V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NC2EB,
or try a keyword search, such as Power/Signal Relays
