NC2EBD-JP-DC5V footprint, schematic symbol and 3D model by Panasonic

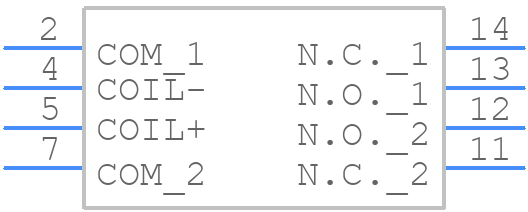

Symbol

click to zoom

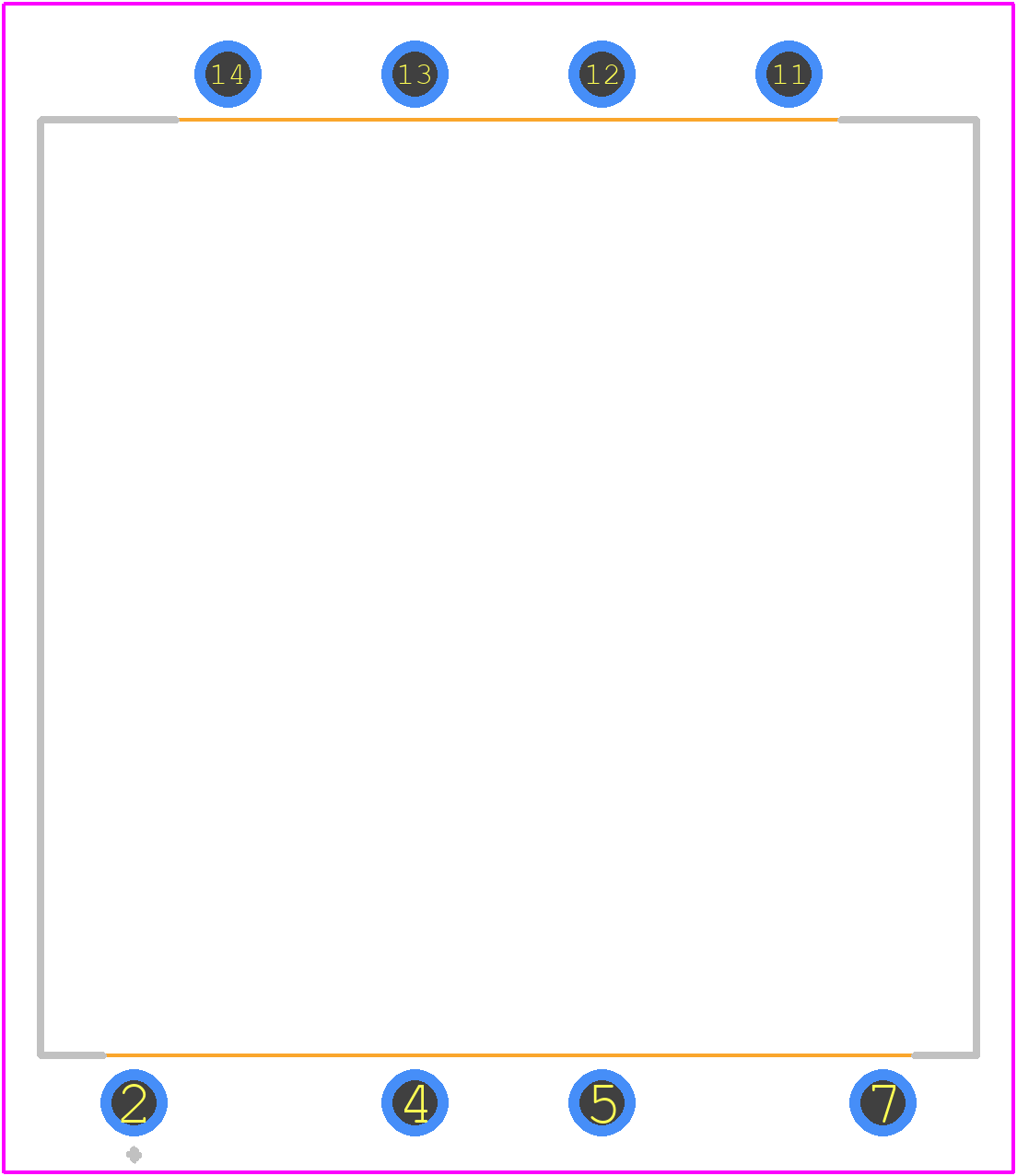

PCB Footprints

NC2EBD-JP-DC5V - Panasonic PCB footprint - Other - Other - AW881x

click to zoom

3D Models

NC2EBD-JP-DC5V - Panasonic - 3D model - Other - AW881x

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for NC2EBD-JP-DC5V
Part Number NC2EBD-JP-DC5V
Manufacturer Panasonic
Pin Count 8
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - AW881x
Released Date Jan 21, 2026
Last Modified Date Mar 30, 2026 5:45 PM UTC
Pinout / Pin List Click Here (Member Only)

NC2EBD-JP-DC5V Details

Manufacturer Part Number:
NC2EBD-JP-DC5V
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
Factory Lead Time:
16 Weeks
Manufacturer:
Panasonic Electronic Components
YTEOL:
7
Body Breadth:
25.4 mm
Body Height:
10.9 mm
Body Length or Diameter:
25.4 mm
Coil Current(DC)-Max:
0.072 A
Coil Operate Voltage(DC):
4 V
Coil Power:
360 mW
Coil Release Voltage(DC):
0.5 V
Coil Resistance:
69.4 Ω
Coil Voltage(DC)-Max:
5 V
Coil/Input Supply Type:
DC
Contact (AC) Max Rating R Load:
3A@250VAC
Contact Current(AC)-Max:
3 A
Contact Current(DC)-Max:
5 A
Contact Voltage(AC)-Max:
250 V
Contact/Output Supply Type:
AC/DC
Electrical Life:
100000 Cycle(s)
Mounting Feature:
THROUGH HOLE-STRAIGHT
Operate Time:
20 ms
Operating Temperature-Max:
70 °C
Operating Temperature-Min:
-40 °C
Packing Method:
BOX
Physical Dimension:
25.4mm x 25.4mm x 10.9mm
Reference Standard:
CSA; UL
Relay Action:
MOMENTARY
Relay Function:
DPDT
Relay Type:
POWER/SIGNAL RELAY
Release Time:
10 ms
Surface Mount:
NO
Termination Type:
SOLDER
