- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for NC3FBH1
- Part Number NC3FBH1
- Manufacturer Neutrik
- Pin Count 5
- Part Category Connector
- Package Category Other

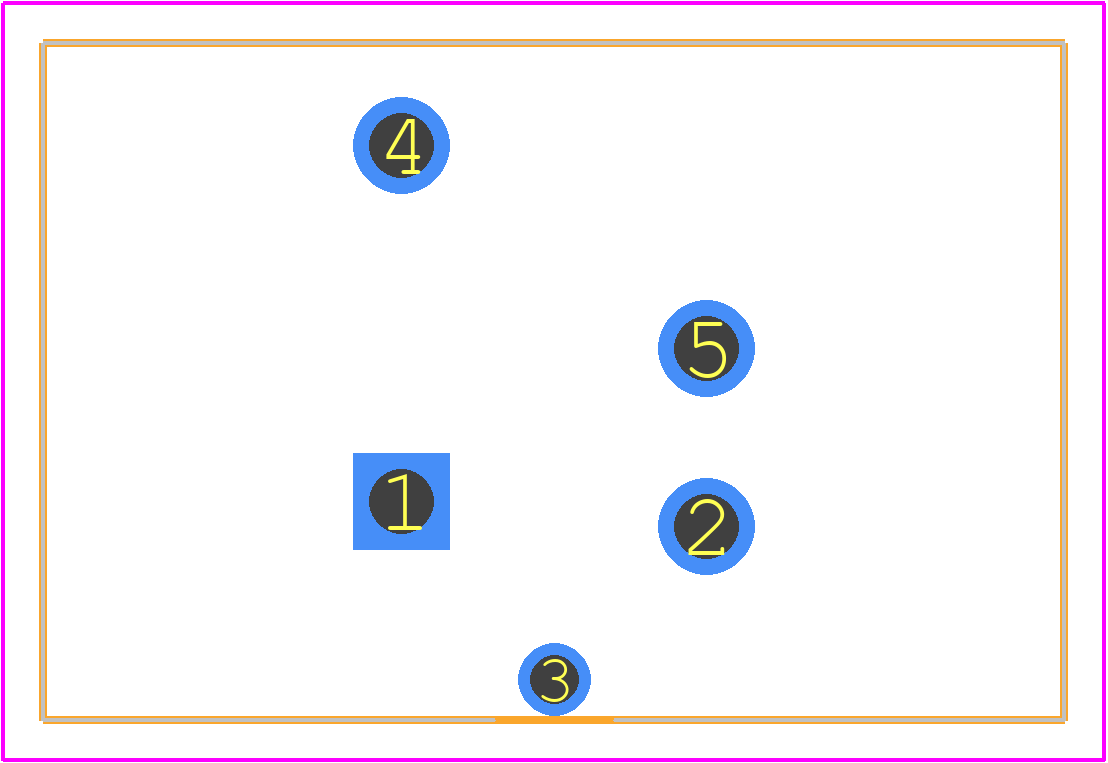

- Footprint Name Other - NC3FBH1-3
- Released Date Jul 14, 2019
- Last Modified Date May 11, 2023 7:00 AM UTC
- Pinout / Pin List Click Here (Member Only)
NC3FBH1 Details
-
Manufacturer Part Number:
NC3FBH1
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.10
-
Manufacturer:
Neutrik USA Inc
-
Additional Feature:
STANDARD: IEC 61076-2-103, IP40
-
Body/Shell Style:
RECEPTACLE
-
Configuration:
1X1 HORIZONTAL
-
Connector Type:
XLR
NC3FBH1 Frequently Asked Questions (FAQs)
-
The recommended torque for tightening the NC3FBH1 connector is 0.5 Nm to 1.5 Nm (0.37 in-lbs to 1.06 in-lbs).
-
Yes, the NC3FBH1 connector is suitable for outdoor use, as it has a rugged design and is rated IP67 for dust and water resistance.
-
No, the NC3FBH1 connector is not designed for high-power applications. It is rated for a maximum current of 10 A and a maximum voltage of 250 V.
-
Yes, the NC3FBH1 connector is compatible with other Neutrik connectors, including the NC3MX and NC3FX series.
-
The operating temperature range of the NC3FBH1 connector is -20°C to 75°C (-4°F to 167°F).
Trust Checks
Expert Contribution
System Verified
Community Approved
NC3FBH1 Overview
Use the download button to access the NC3FBH1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NC3FB,
or try a keyword search, such as Audio/RCA Connectors
About Neutrik
Neutrik is a leading manufacturer of audio connectors, professional entertainment and industrial interconnect solutions. The company specializes in the design, production, and distribution of high-quality connectors, cable connectors, patch panels, and related accessories. Neutrik's products are widely used in the audio, video, lighting, and industrial markets, serving professionals in the entertainment, broadcast, recording, and stage production industries.
