Panasonic provides a recommended PCB layout and land pattern in their application notes or relay mounting instructions. It's essential to follow these guidelines to ensure proper relay operation and prevent overheating or electrical noise issues.
The NC4D-JP-DC12V relay has a coil voltage rating of 12V and a coil current rating of 17.8mA. Ensure your design provides a stable 12V power supply and limits the coil current to the recommended value to prevent overheating or damage.
The NC4D-JP-DC12V relay has an operating temperature range of -40°C to 85°C. Operating the relay outside this range may affect its performance, reliability, and lifespan. Ensure your design takes into account the relay's temperature limitations and provides adequate cooling or heat dissipation measures.
Regularly cleaning the relay's contacts with a soft brush or a cotton swab and a mild solvent can help prevent contamination. Avoid using harsh chemicals or abrasive materials that may damage the contacts. Also, ensure the relay is stored in a clean, dry environment to prevent moisture or dust accumulation.
The NC4D-JP-DC12V relay has an expected lifespan of 100,000 to 200,000 cycles, depending on the operating conditions. To extend the relay's lifespan, ensure proper handling, storage, and installation, and avoid excessive voltage, current, or temperature stress. Regular maintenance and cleaning can also help prolong the relay's lifespan.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NC4D-JP-DC12V Overview

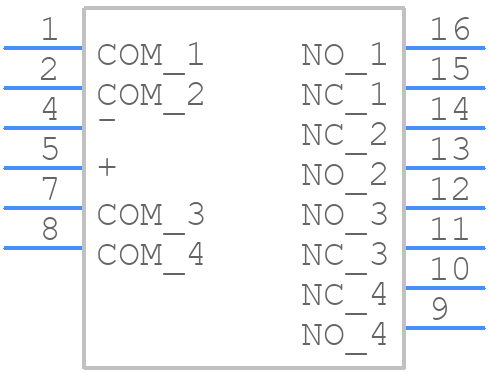

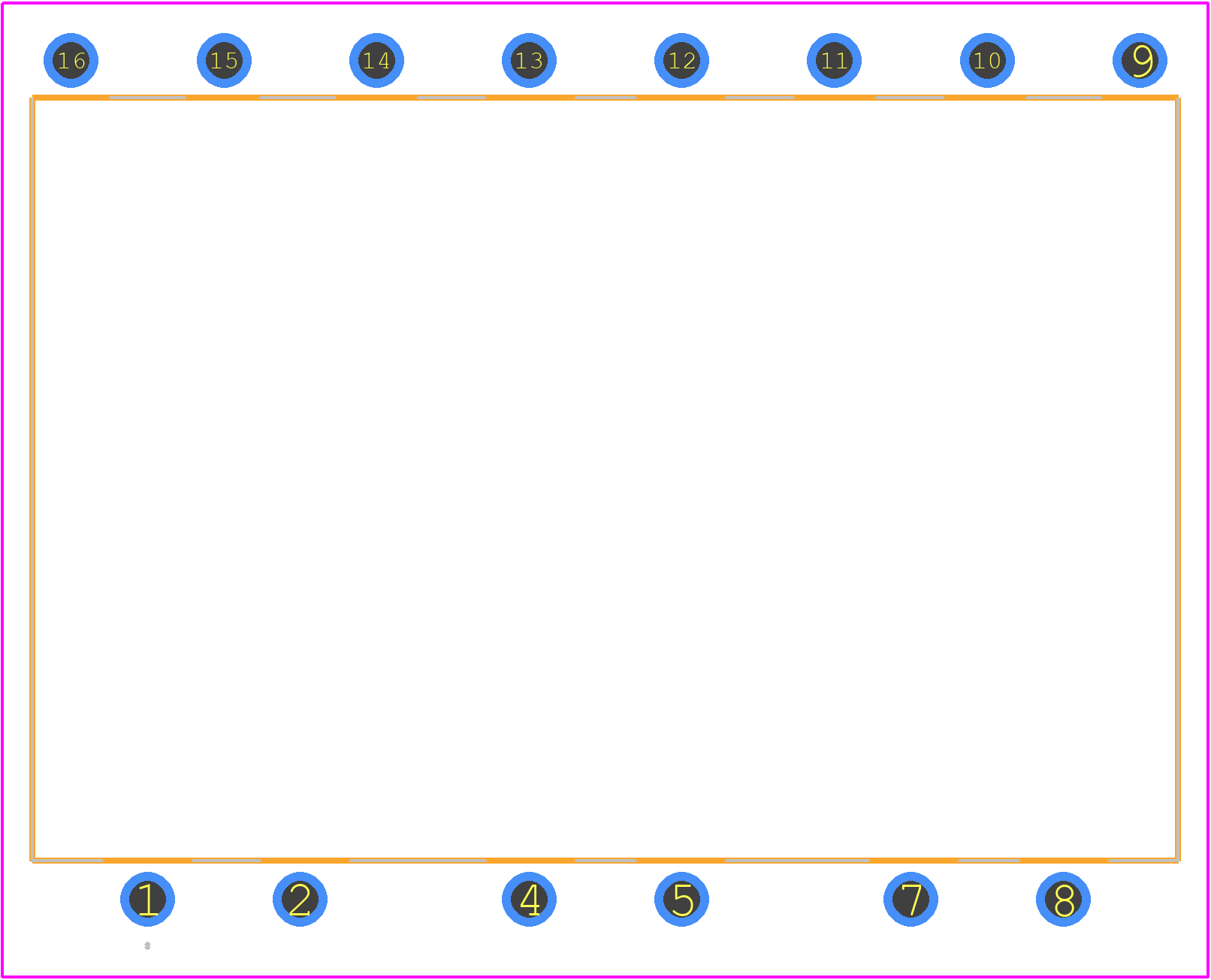

Use the download button to access the NC4D-JP-DC12V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NC4D-,
or try a keyword search, such as Power/Signal Relays
