NC4D-P-DC12V - Panasonic

Description: Transistor drive, 2 Form C/4 Form C, 5 A Slim power relays

Download NC4D-P-DC12V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

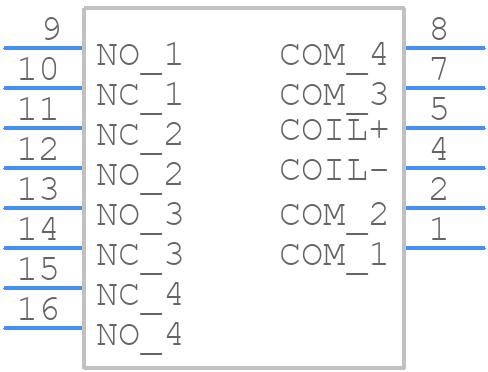

NC4D-P-DC12V - Panasonic - PCB symbol
click to zoom
PCB Footprints

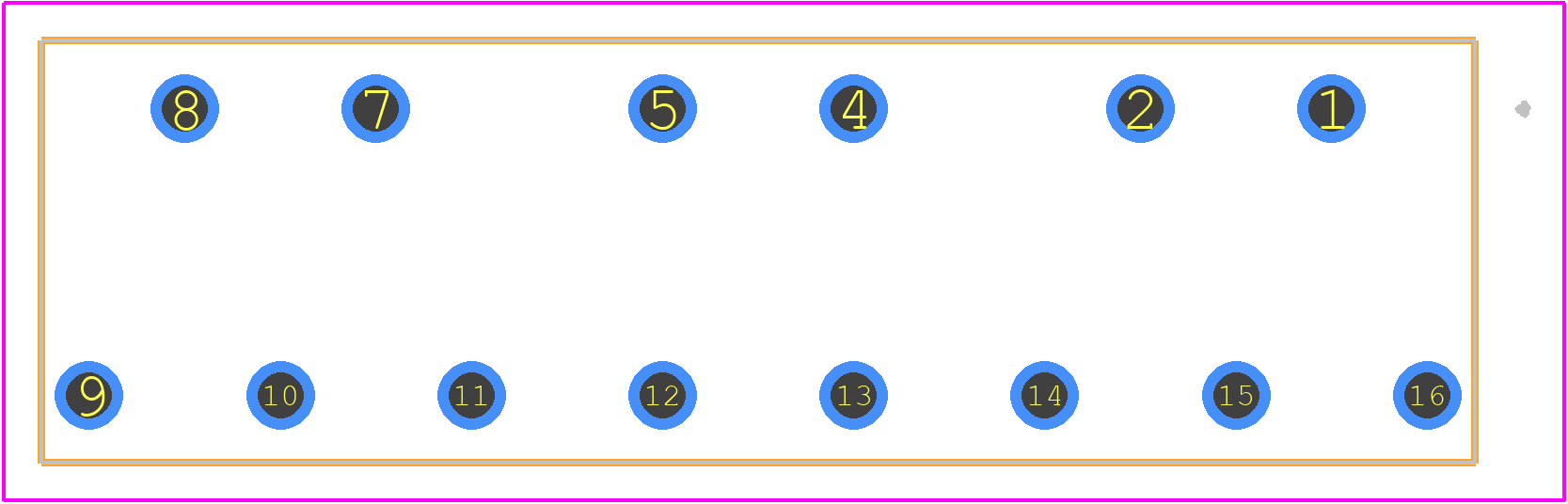

NC4D-P-DC12V - Panasonic PCB footprint - Other - Other - NC4D-P-DC12V-1
click to zoom
3D Models
NC4D-P-DC12V - Panasonic - 3D model - Other - NC4D-P-DC12V-1
click to zoom

NC4D-P-DC12V Details

  • Manufacturer Part Number:

    NC4D-P-DC12V

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    6

  • Body Breadth:

    11.2 mm

  • Body Height:

    27.8 mm

  • Body Length or Diameter:

    38.1 mm

  • Coil Current(DC)-Max:

    0.06 A

  • Coil Operate Voltage(DC):

    9.6 V

  • Coil Power:

    720 mW

  • Coil Release Voltage(DC):

    1.2 V

  • Coil Resistance:

    200 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    4A@250VAC

  • Contact Current(AC)-Max:

    4 A

  • Contact Voltage(AC)-Max:

    250 V

  • Contact/Output Supply Type:

    AC

  • Electrical Life:

    100000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    20 ms

  • Operating Temperature-Max:

    55 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX

  • Physical Dimension:

    38.1mm x 11.2mm x 27.8mm

  • Reference Standard:

    CSA; UL

  • Relay Action:

    MOMENTARY

  • Relay Function:

    4PDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    10 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER
