A good PCB layout for the NC4D-P-DC24V involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces to reduce noise and EMI.
To ensure reliability in high-temperature applications, it's essential to follow the recommended derating curves, ensure good thermal management, and consider using a heat sink or thermal interface material to reduce the junction temperature.
The NC4D-P-DC24V is not hermetically sealed, so it's essential to take precautions in high-humidity environments. Consider using conformal coating, potting, or encapsulation to protect the device from moisture, and ensure good PCB cleanliness and handling practices.
Yes, you can use multiple NC4D-P-DC24V devices in parallel to increase the output current. However, it's crucial to ensure that the devices are properly synchronized and that the output currents are balanced to avoid uneven current sharing.
The NC4D-P-DC24V is a switching regulator, so it's essential to consider EMI and EMC in the design. Use a good PCB layout, add EMI filters or chokes as needed, and ensure that the device is properly shielded and grounded to minimize electromagnetic interference.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NC4D-P-DC24V Overview

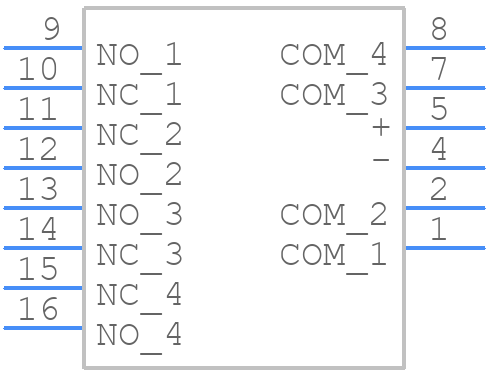

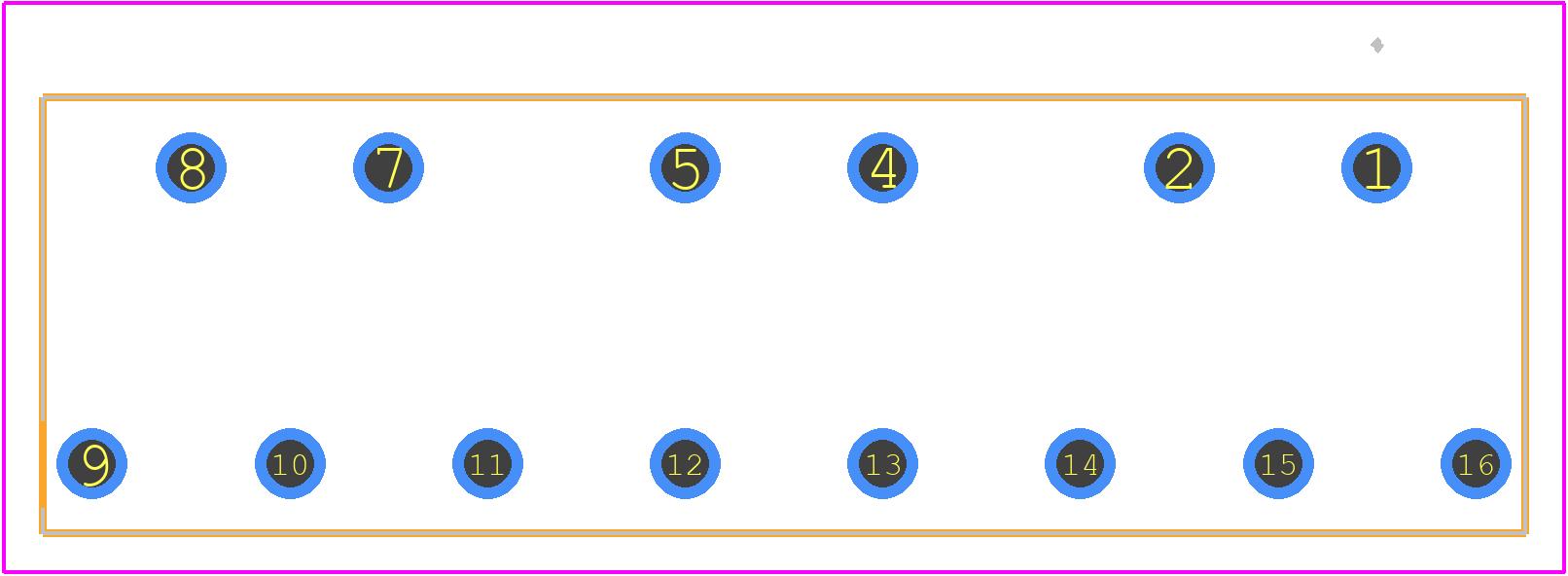

Use the download button to access the NC4D-P-DC24V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NC4D-,
or try a keyword search, such as Power/Signal Relays
