Panasonic provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper soldering, thermal management, and to prevent damage to the relay.
To handle the high inrush current, consider using a soft-start circuit or an NTC thermistor in series with the relay coil to limit the inrush current. Additionally, ensure that the power supply can handle the peak current demand.
While the datasheet specifies an operating temperature range of -40°C to 85°C, it's essential to consider the relay's performance in extreme environments. Panasonic provides additional information on temperature derating and performance in their application notes or technical support resources.
To ensure clean contacts, follow proper handling and storage procedures, and consider using a contact protection coating or sealant. Additionally, use a relay with a built-in contact protection feature, such as Panasonic's 'Clean Contact' technology.
The relay's lifespan depends on various factors, including operating conditions, switching frequency, and load characteristics. Panasonic provides reliability data and expected lifespan information in their application notes or technical support resources. Consider this data when designing and selecting the relay for your application.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NC4D-P-DC6V Overview

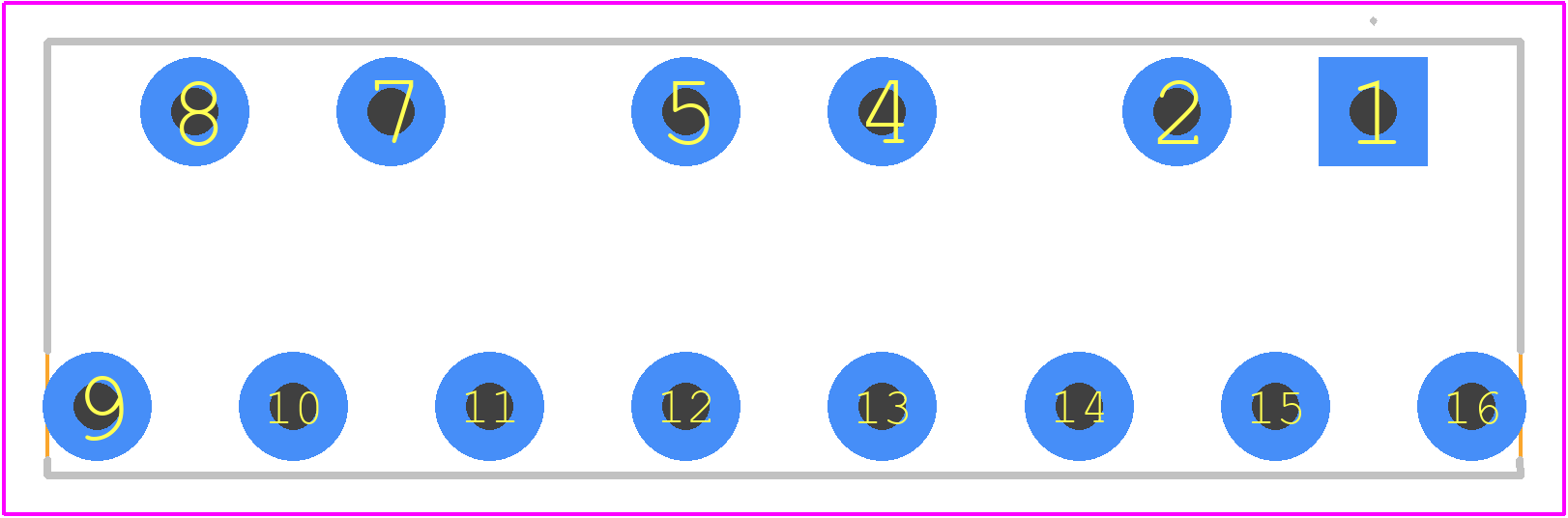

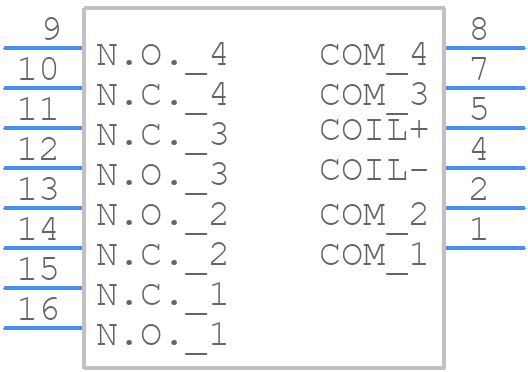

Use the download button to access the NC4D-P-DC6V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NC4D-,
or try a keyword search, such as Power/Signal Relays
