NC4EBD-JP-DC12V - Panasonic

Description: Transistor drive, 2 Form C/4 Form C, 5 A Slim power relays

Download NC4EBD-JP-DC12V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

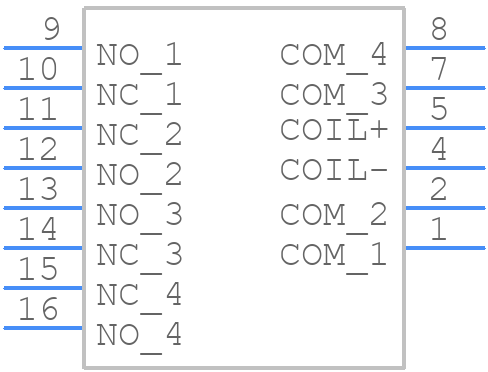

NC4EBD-JP-DC12V - Panasonic - PCB symbol
click to zoom
PCB Footprints

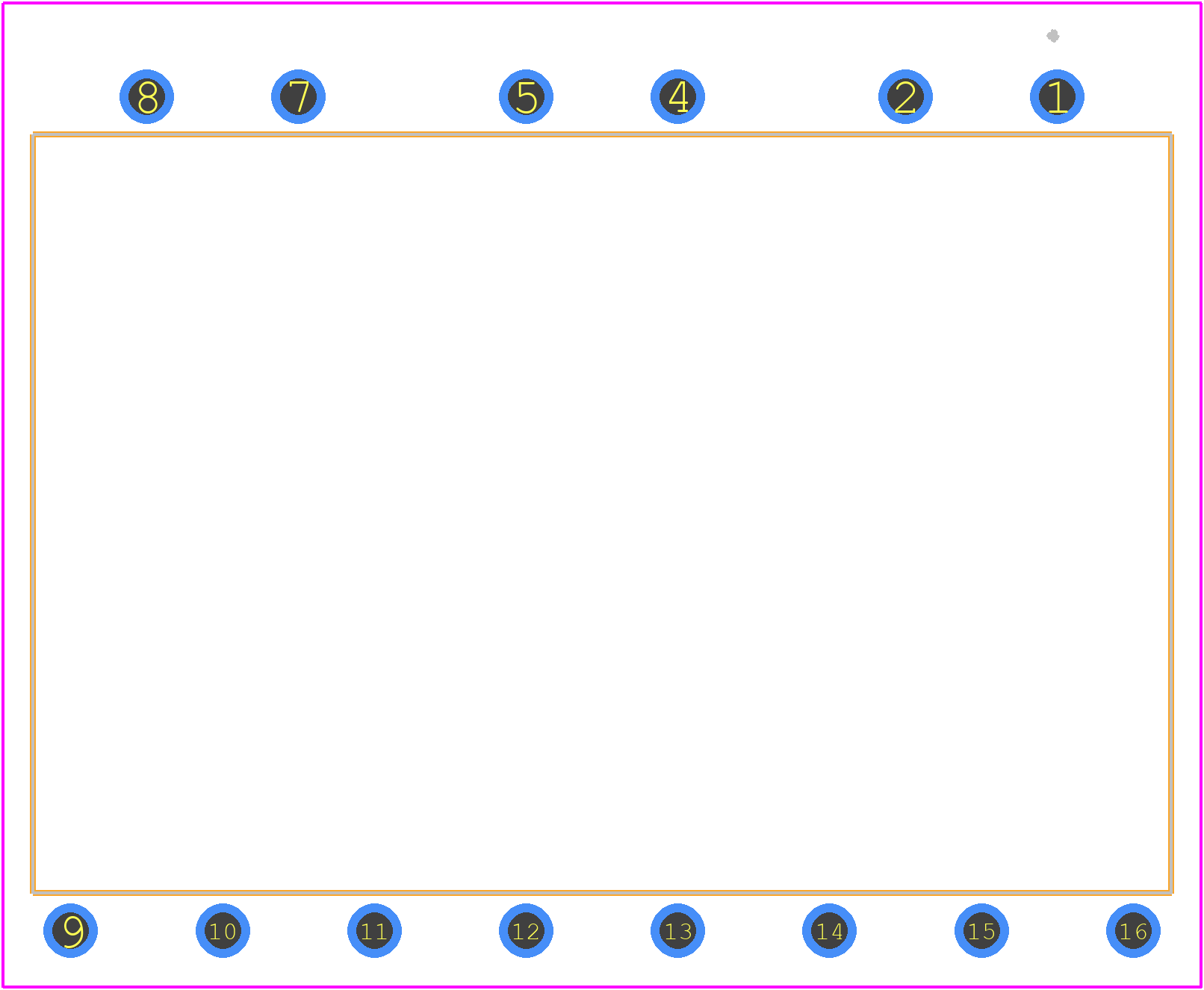

NC4EBD-JP-DC12V - Panasonic PCB footprint - Other - Other - NC4EBD-JP-DC12V-1
click to zoom
3D Models
NC4EBD-JP-DC12V - Panasonic - 3D model - Other - NC4EBD-JP-DC12V-1
click to zoom

NC4EBD-JP-DC12V Details

  • Manufacturer Part Number:

    NC4EBD-JP-DC12V

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Body Breadth:

    25.4 mm

  • Body Height:

    10.9 mm

  • Body Length or Diameter:

    38.1 mm

  • Coil Current(DC)-Max:

    0.06 A

  • Coil Operate Voltage(DC):

    9.6 V

  • Coil Power:

    720 mW

  • Coil Release Voltage(DC):

    1.2 V

  • Coil Resistance:

    200 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    2A@250VAC

  • Contact Current(AC)-Max:

    2 A

  • Contact Current(DC)-Max:

    5 A

  • Contact Voltage(AC)-Max:

    250 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    100000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    20 ms

  • Operating Temperature-Max:

    55 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX

  • Physical Dimension:

    38.1mm x 25.4mm x 10.9mm

  • Reference Standard:

    CSA; UL

  • Relay Action:

    MOMENTARY

  • Relay Function:

    4PDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    10 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

NC4EBD-JP-DC12V Frequently Asked Questions (FAQs)

  • Panasonic recommends a PCB layout with a solid ground plane and a separate power plane for the relay coil to minimize electromagnetic interference (EMI) and ensure reliable operation.
  • To handle the inrush current, it's recommended to use a current-limiting resistor or an inrush current limiter in series with the relay coil to prevent damage to the relay and surrounding components.
  • The maximum switching frequency for the NC4EBD-JP-DC12V relay is 20 Hz, as specified in the datasheet. Exceeding this frequency may lead to reduced relay life and reliability.
  • The NC4EBD-JP-DC12V relay is rated for operation up to 85°C, but it's recommended to derate the relay's performance and consider using a relay with a higher temperature rating if the operating temperature exceeds 70°C.
  • To ensure clean and reliable contacts, it's recommended to use a contact cleaning procedure, such as using a soft brush or a contact cleaning solution, and to handle the relay by the case rather than the pins to prevent contamination.
