Panasonic recommends a PCB layout with a solid ground plane, minimal track length, and a decoupling capacitor (e.g., 10uF) between the input and output pins to reduce noise and ensure stable operation.
To ensure reliable operation in high-temperature environments, ensure proper heat dissipation, use a heat sink if necessary, and follow the recommended derating guidelines for temperature and output current.
While the datasheet specifies a recommended input voltage range, Panasonic recommends keeping the input voltage deviation within ±10% of the nominal voltage to ensure stable operation and prevent damage to the device.
Yes, the NC4EBD-P-DC12V can be used in redundant or parallel configurations, but it's essential to follow proper design guidelines and ensure that the total output current does not exceed the maximum rating.
The typical efficiency of the NC4EBD-P-DC12V varies depending on the load. At full load, the efficiency is around 85%, while at 50% load, it's around 80%. For specific efficiency values, consult the datasheet or contact Panasonic support.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NC4EBD-P-DC12V Overview

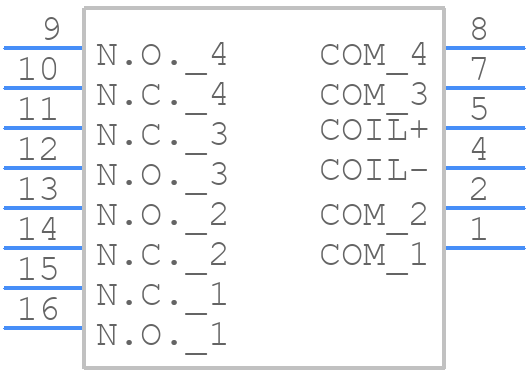

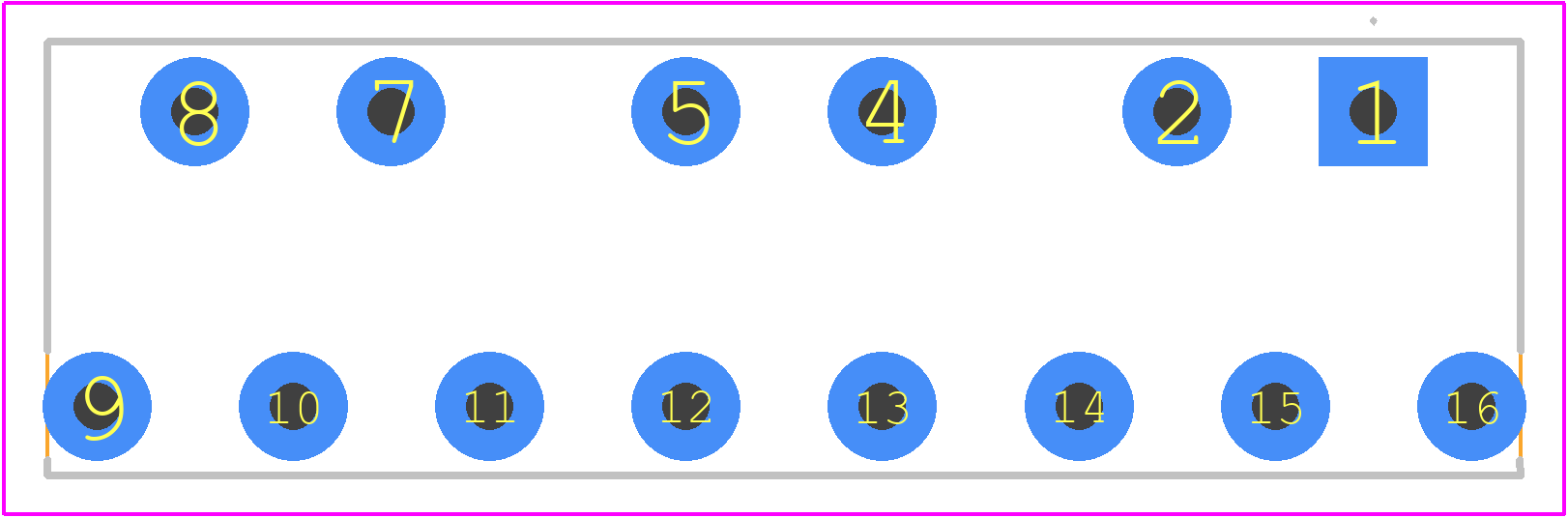

Use the download button to access the NC4EBD-P-DC12V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NC4EB,
or try a keyword search, such as Power/Signal Relays
