A good PCB layout for the NC4EBD-P-DC24V involves keeping the input and output pins separate, using a ground plane, and minimizing the length of the input and output traces to reduce noise and electromagnetic interference (EMI).
To ensure reliability in high-temperature applications, it's essential to follow the recommended derating curves, ensure good thermal management, and consider using a heat sink if necessary. Additionally, selecting components with a high temperature rating and using a reliable soldering process can help.
To minimize EMI and RFI, use a metal shield around the NC4EBD-P-DC24V, keep the input and output cables separate, and use a common-mode choke or ferrite bead on the input and output lines. Additionally, ensure good grounding and use a shielded enclosure if necessary.
Yes, the NC4EBD-P-DC24V can be used in a redundant or parallel configuration to achieve higher power or reliability. However, it's essential to ensure proper synchronization and control of the multiple units to avoid instability or oscillation.
The NC4EBD-P-DC24V should be used in accordance with relevant safety standards, such as IEC 60601-1 for medical applications or IEC 61010-1 for industrial applications. Ensure proper isolation, insulation, and protection against electrical shock, and follow the manufacturer's guidelines for safe operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NC4EBD-P-DC24V Overview

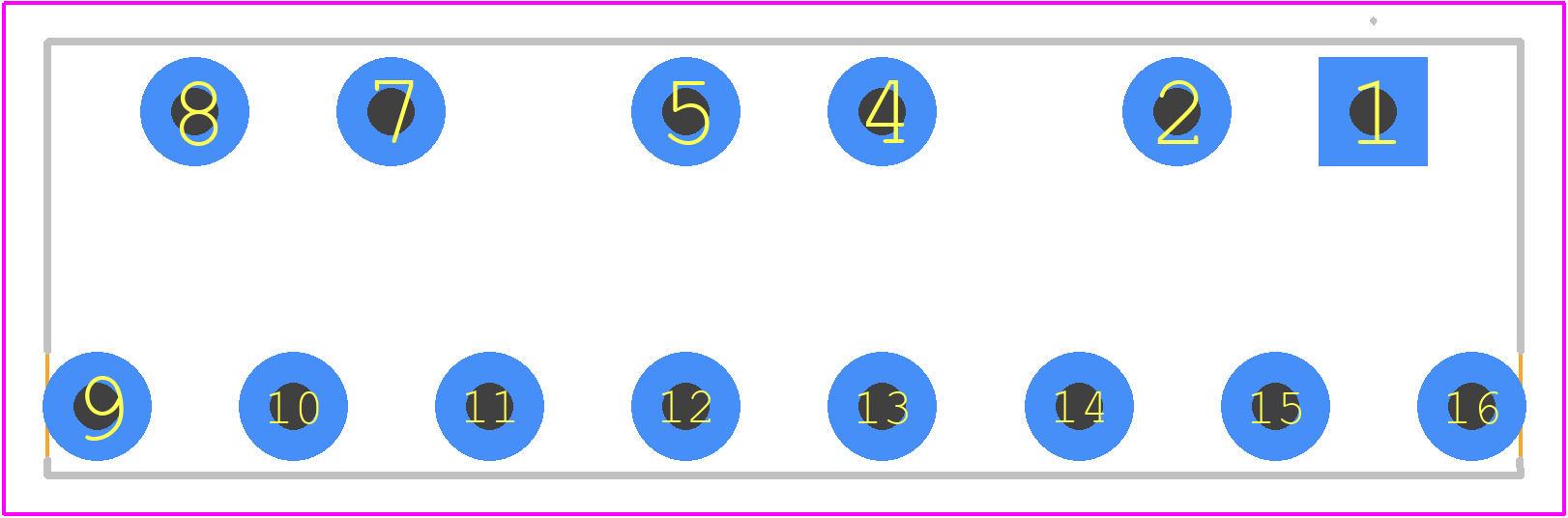

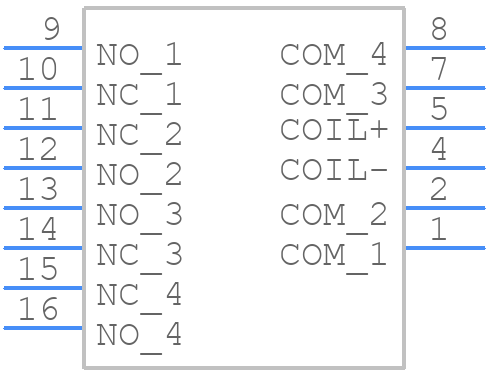

Use the download button to access the NC4EBD-P-DC24V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NC4EB,
or try a keyword search, such as Power/Signal Relays
