Panasonic recommends a PCB layout with a solid ground plane, minimal track length, and a decoupling capacitor (e.g., 10uF) between VCC and GND to reduce noise and ensure stable operation.
NC4EBD-P-DC5V has built-in ESD protection, but it's still recommended to follow standard ESD handling procedures, such as using an ESD wrist strap or mat, and storing the component in an anti-static bag or container.
While the datasheet specifies an operating temperature range of -40°C to 85°C, it's essential to note that the component's performance may degrade at extreme temperatures. It's recommended to operate within a range of 0°C to 70°C for optimal performance.
NC4EBD-P-DC5V is designed to withstand moderate vibrations, but it's not suitable for extreme vibration environments. If your application involves high vibrations, consider using a component with specific vibration-resistant design or additional mechanical support.
To troubleshoot issues, start by verifying the component's pin connections, power supply, and signal integrity. Use an oscilloscope to check for signal anomalies, and consult Panasonic's application notes and technical support resources for guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NC4EBD-P-DC5V Overview

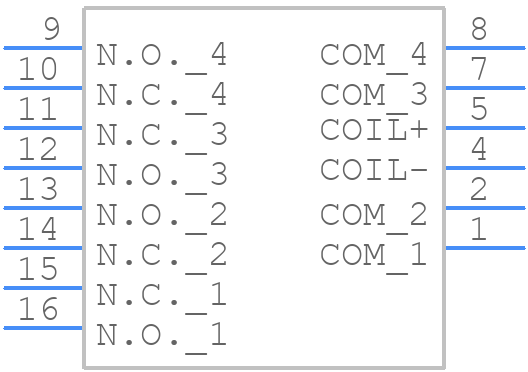

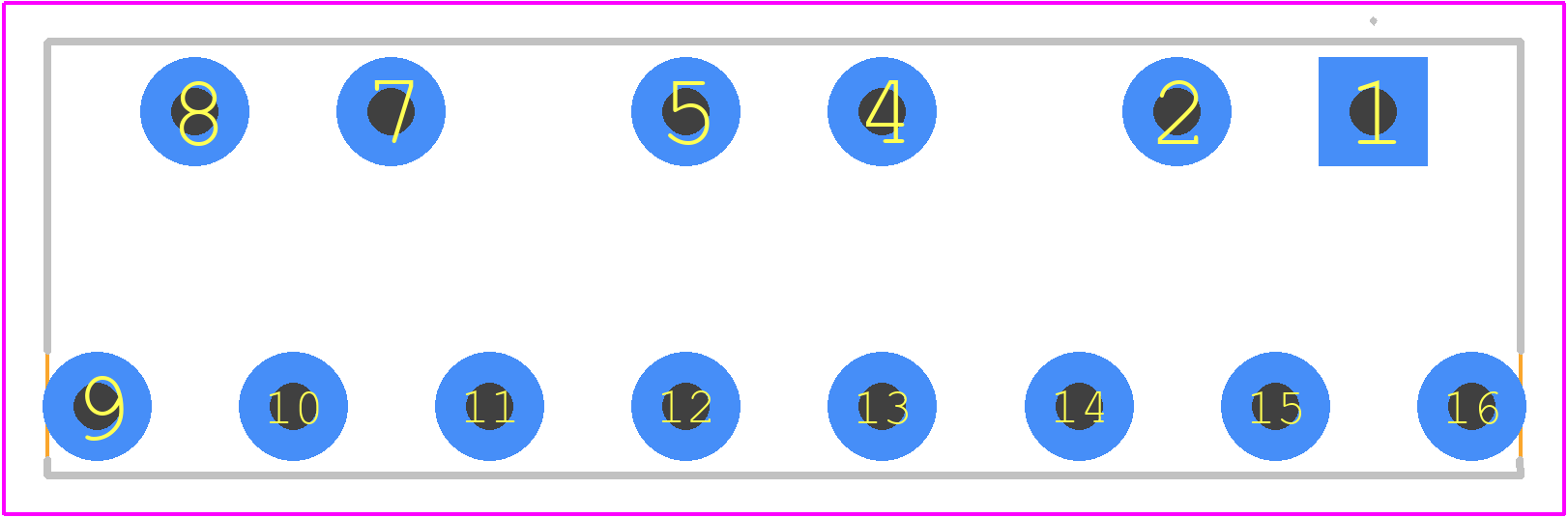

Use the download button to access the NC4EBD-P-DC5V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NC4EB,
or try a keyword search, such as Power/Signal Relays
