NC5FBH-B - Neutrik

Description: XLR Connectors 5 POS XLR FEMALE

Download NC5FBH-B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

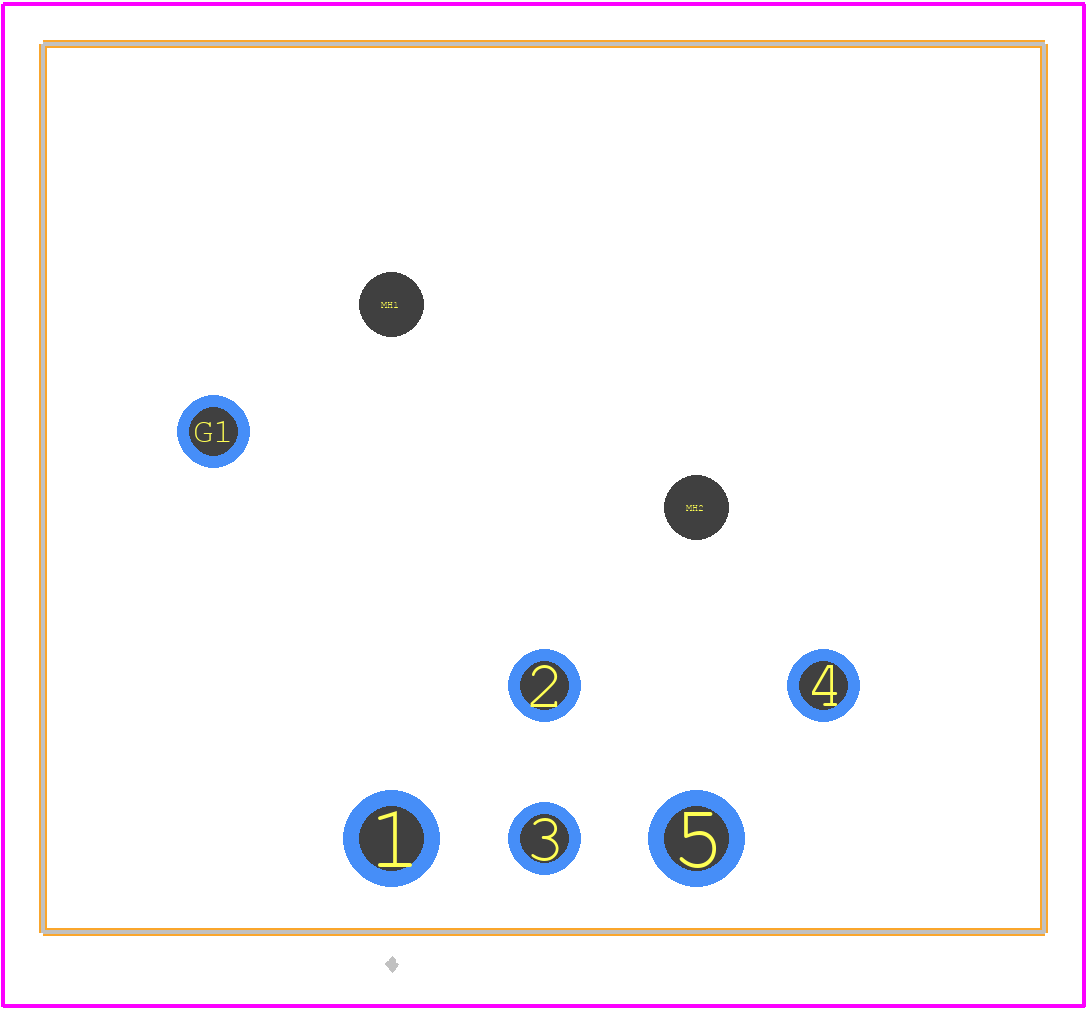

NC5FBH-B - Neutrik PCB footprint - Other - Other - NC5FBH-B-1
click to zoom
3D Models
NC5FBH-B - Neutrik  - 3D model - Other - NC5FBH-B-1
click to zoom

NC5FBH-B Details

  • Manufacturer Part Number:

    NC5FBH-B

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Neutrik USA Inc

  • YTEOL:

    0

  • Connector Type:

    XLR

NC5FBH-B Frequently Asked Questions (FAQs)

  • The recommended torque for the NC5FBH-B connector is 0.5 Nm to 1.5 Nm (4.4 in-lbs to 13.3 in-lbs).
  • Yes, the NC5FBH-B connector is suitable for outdoor use due to its IP67 rating, which provides protection against dust and water ingress.
  • No, the NC5FBH-B connector is not suitable for high-power applications. It is designed for low-power, high-frequency applications such as audio and video transmission.
  • Yes, the NC5FBH-B connector is compatible with other Neutrik connectors, including the NC5MX-B and NC5FX-B connectors.
  • The operating temperature range of the NC5FBH-B connector is -20°C to 75°C (-4°F to 167°F).

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NC5FBH-B Overview

Use the download button to access the NC5FBH-B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NC5FB, or try a keyword search, such as Audio/RCA Connectors

About Neutrik

Neutrik is a leading manufacturer of audio connectors, professional entertainment and industrial interconnect solutions. The company specializes in the design, production, and distribution of high-quality connectors, cable connectors, patch panels, and related accessories. Neutrik's products are widely used in the audio, video, lighting, and industrial markets, serving professionals in the entertainment, broadcast, recording, and stage production industries.
