NC5FBV-B footprint, schematic symbol and 3D model by Neutrik

Symbol

click to zoom

PCB Footprints

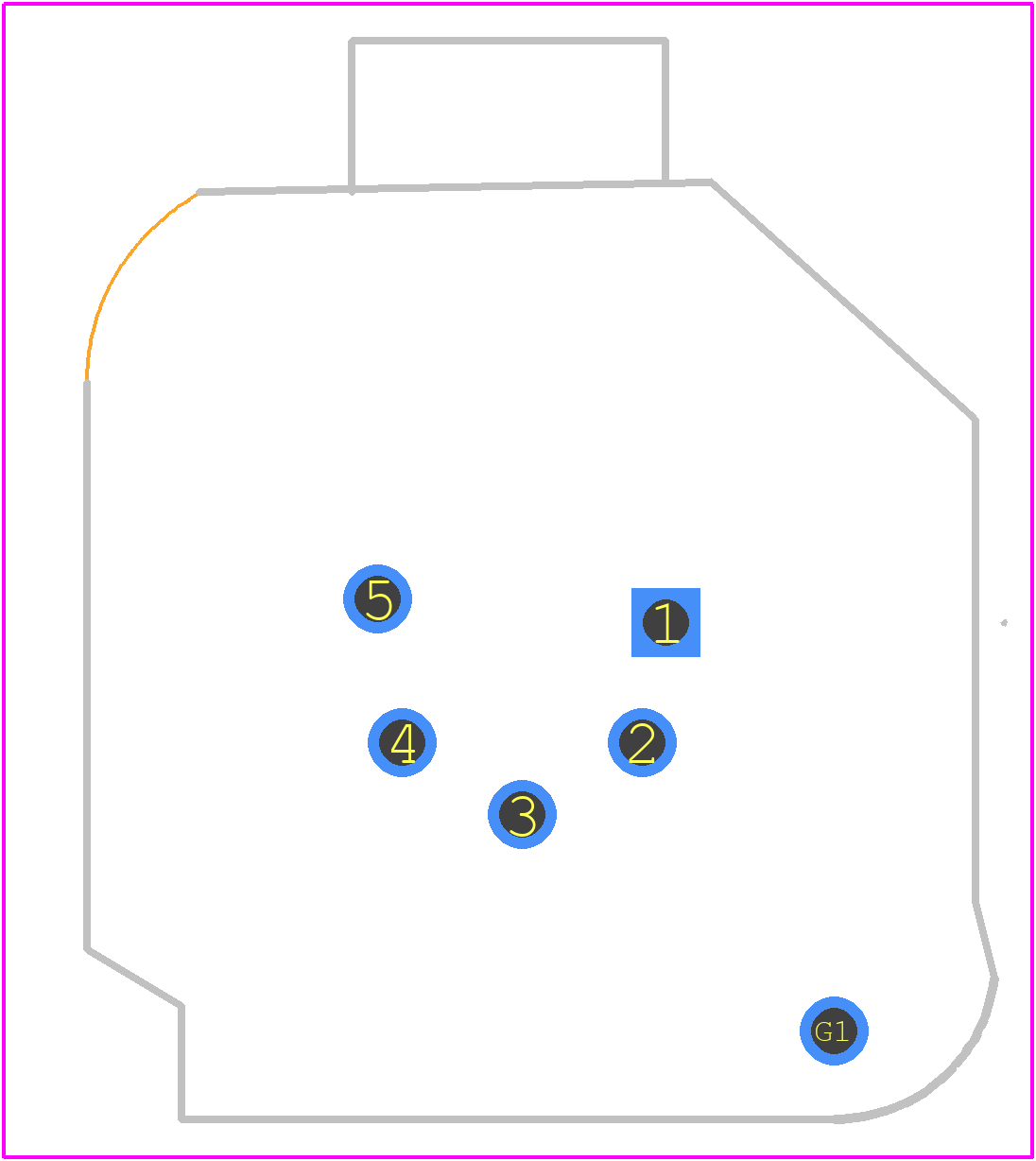

NC5FBV-B - Neutrik PCB footprint - Other - Other - NC5FBV-B-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for NC5FBV-B
Part Number NC5FBV-B
Manufacturer Neutrik
Pin Count 6
Part Category Connector
Package Category Other
Footprint Name Other - NC5FBV-B-1
Released Date Sep 24, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

NC5FBV-B Details

Manufacturer Part Number:
NC5FBV-B
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.10
Manufacturer:
Neutrik USA Inc
YTEOL:
8
Additional Feature:
STANDARD: IEC 61076-2-103
Body Breadth:
0.984 inch
Body Depth:
1.0513 inch
Body Length:
0.984 inch
Body/Shell Style:
RECEPTACLE
Configuration:
1X1 VERTICAL
Connector Type:
XLR
Contact Gender:
FEMALE
Contact Resistance:
6 mΩ
Contact Style:
RND PIN-SKT
Dielectric Withstanding Voltage:
1500VDC V
Durability:
1000 Cycles
Insertion Force-Max:
20 N
Insulation Resistance:
10000000000 Ω
Insulator Material:
POLYAMIDE66
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD AND PANEL
Number of Poles:
5
Number of Ports:
1
Operating Temperature-Max:
80 °C
Operating Temperature-Min:
-30 °C
Option:
GENERAL PURPOSE
Polarization Key:
POLARIZED KEY
Rated Current (Signal):
3 A
Reference Standard:
IEC; UL
Terminal Length:
0.138 inch
Termination Type:
SOLDER

NC5FBV-B Frequently Asked Questions (FAQs)

The recommended torque for tightening the NC5FBV-B connector is 0.6 Nm (5.3 in-lbs) to 1.2 Nm (10.3 in-lbs) according to Neutrik's documentation.
Yes, the NC5FBV-B connector is suitable for outdoor use due to its rugged design and IP65 rating, which provides protection against dust and water ingress.
The NC5FBV-B connector is rated for a maximum current of 20 A, making it suitable for medium-power applications. For high-power applications, Neutrik recommends using their higher-current-rated connectors, such as the NC5FCA-HC or NC5FCA-HCF.
Yes, the NC5FBV-B connector is compatible with other Neutrik connectors that have the same XLR configuration and size, such as the NC5FDW-B and NC5FMDW-B.
The operating temperature range of the NC5FBV-B connector is -20°C to +70°C (-4°F to +158°F) according to Neutrik's specifications.

Trust Checks

Community Provided

System Verified

Community Approved

NC5FBV-B Overview

Use the download button to access the NC5FBV-B schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like NC5FB, or try a keyword search, such as Audio/RCA Connectors

About Neutrik

Neutrik is a leading manufacturer of audio connectors, professional entertainment and industrial interconnect solutions. The company specializes in the design, production, and distribution of high-quality connectors, cable connectors, patch panels, and related accessories. Neutrik's products are widely used in the audio, video, lighting, and industrial markets, serving professionals in the entertainment, broadcast, recording, and stage production industries.
