NC5MBV-B - Neutrik

Description: XLR Connectors 5P M RECEPT B SER PCBV PN 1 GRD SEP BK

Download NC5MBV-B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NC5MBV-B - Neutrik - PCB symbol
click to zoom
PCB Footprints

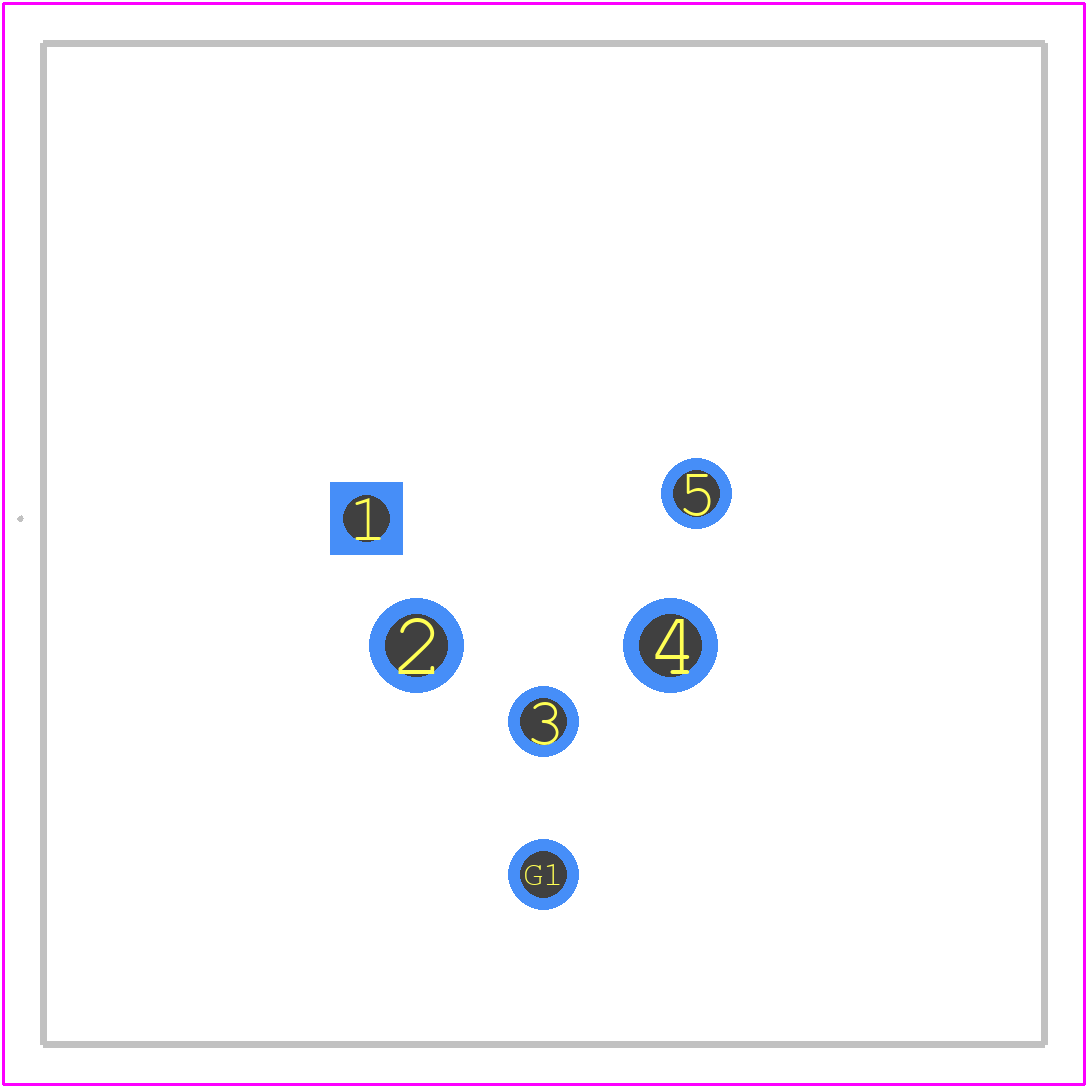

NC5MBV-B - Neutrik PCB footprint - Other - Other - NC5MBV-B-2
click to zoom
3D Models
NC5MBV-B - Neutrik - 3D model - Other - NC5MBV-B-2
click to zoom

NC5MBV-B Details

  • Manufacturer Part Number:

    NC5MBV-B

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Neutrik USA Inc

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: IEC 61076-2-103, IP40

  • Body Breadth:

    0.984 inch

  • Body Depth:

    1.055 inch

  • Body Length:

    0.984 inch

  • Body/Shell Style:

    RECEPTACLE

  • Configuration:

    1X1 VERTICAL

  • Connector Type:

    XLR

  • Contact Gender:

    MALE

  • Contact Resistance:

    6 mΩ

  • Contact Style:

    RND PIN-SKT

  • Dielectric Withstanding Voltage:

    1500VDC V

  • Durability:

    1000 Cycles

  • Insertion Force-Max:

    20 N

  • Insulation Resistance:

    10000000000 Ω

  • Insulator Material:

    POLYAMIDE66

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD AND PANEL

  • Number of Poles:

    5

  • Number of Ports:

    1

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    IEC; UL

  • Termination Type:

    SOLDER

NC5MBV-B Frequently Asked Questions (FAQs)

  • The recommended torque for the NC5MBV-B connector is 0.5 Nm to 1.5 Nm (0.37 lbf.in to 1.06 lbf.in) for the screw locks, and 1.5 Nm to 2.5 Nm (1.06 lbf.in to 2.18 lbf.in) for the hex nuts.
  • Yes, the NC5MBV-B connector is suitable for outdoor use due to its IP67 rating, which provides protection against dust and water ingress. However, it's essential to ensure proper sealing and installation to maintain the IP67 rating.
  • The NC5MBV-B connector is rated for a maximum current of 20 A and a maximum voltage of 250 V. While it can handle moderate power applications, it's not suitable for high-power applications. For high-power applications, consider using a connector with a higher current and voltage rating.
  • Yes, the NC5MBV-B connector is part of the Neutrik X-series and is compatible with other X-series connectors. However, it's essential to ensure that the connector is mated with a compatible connector to ensure proper connection and to avoid damage.
  • The operating temperature range of the NC5MBV-B connector is -30°C to +80°C (-22°F to +176°F). It's essential to ensure that the connector is operated within this temperature range to maintain its performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NC5MBV-B Overview

Use the download button to access the NC5MBV-B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NC5MB, or try a keyword search, such as Audio/RCA Connectors

About Neutrik

Neutrik is a leading manufacturer of audio connectors, professional entertainment and industrial interconnect solutions. The company specializes in the design, production, and distribution of high-quality connectors, cable connectors, patch panels, and related accessories. Neutrik's products are widely used in the audio, video, lighting, and industrial markets, serving professionals in the entertainment, broadcast, recording, and stage production industries.
