NC5MBV - Neutrik

Description: XLR Connectors Recpt B 5P M PCBV Pin 1/gnd sep nickel

Download NC5MBV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NC5MBV - Neutrik - PCB symbol
click to zoom
PCB Footprints

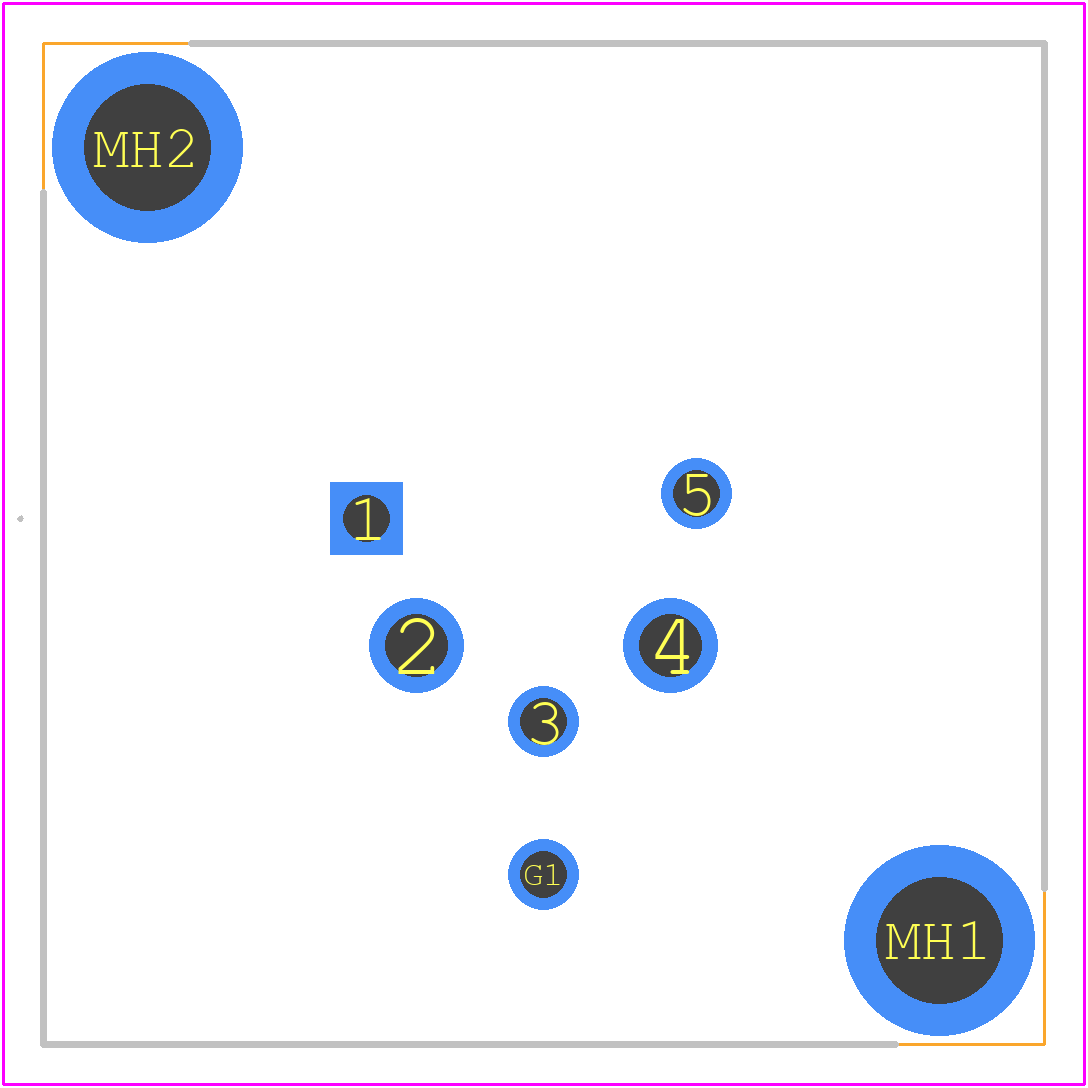

NC5MBV - Neutrik PCB footprint - Other - Other - NC5MBV-2
click to zoom
3D Models
NC5MBV - Neutrik - 3D model - Other - NC5MBV-2
click to zoom

NC5MBV Details

  • Manufacturer Part Number:

    NC5MBV

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Neutrik USA Inc

  • YTEOL:

    0

  • Additional Feature:

    STANDARD: IEC 61076-2-103, IP40

  • Body Breadth:

    0.984 inch

  • Body Depth:

    1.055 inch

  • Body Length:

    0.984 inch

  • Body/Shell Style:

    RECEPTACLE

  • Configuration:

    1X1 VERTICAL

  • Connector Type:

    XLR

  • Contact Gender:

    MALE

  • Contact Resistance:

    6 mΩ

  • Contact Style:

    RND PIN-SKT

  • Dielectric Withstanding Voltage:

    1500VDC V

  • Durability:

    1000 Cycles

  • Insertion Force-Max:

    20 N

  • Insulation Resistance:

    10000000000 Ω

  • Insulator Material:

    POLYAMIDE66

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD AND PANEL

  • Number of Poles:

    5

  • Number of Ports:

    1

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    IEC; UL

  • Termination Type:

    SOLDER

NC5MBV Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the NC5MBV connector is 0.5 Nm to 1.5 Nm (0.37 lbf·in to 1.06 lbf·in).
  • Yes, the NC5MBV connector is suitable for outdoor use, as it has an IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.
  • No, the NC5MBV connector is not designed for high-power applications. It is rated for a maximum current of 5 A and a maximum voltage of 50 V.
  • Yes, the NC5MBV connector is compatible with other Neutrik connectors, such as the NC3MBV and NC5FDV, but it is not compatible with connectors from other manufacturers.
  • Yes, the NC5MBV connector is designed to withstand high-vibration environments, making it suitable for use in applications such as industrial machinery, transportation, and construction equipment.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NC5MBV Overview

Use the download button to access the NC5MBV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NC5MB, or try a keyword search, such as Audio/RCA Connectors

About Neutrik

Neutrik is a leading manufacturer of audio connectors, professional entertainment and industrial interconnect solutions. The company specializes in the design, production, and distribution of high-quality connectors, cable connectors, patch panels, and related accessories. Neutrik's products are widely used in the audio, video, lighting, and industrial markets, serving professionals in the entertainment, broadcast, recording, and stage production industries.
