NC7NZ04L8X - onsemi

Description: High Output Drive: ±24mA at 3VCC ; Broad VCC Operating Range: 1.65V to 5.5V ; Ultra-High Speed: tPD 2.4ns (Typical) into 50pF at 5V VCC ; Proprietary Noise / EMI Reduction Circuitry ; Power-Down, High-Impedance Inputs / Outputs ; Over-Voltage Tolerance Inputs Facilitate 5V to 3V Translation ; Space-Saving MicroPak™ and US8 Surface Mount Packages

Download NC7NZ04L8X Model

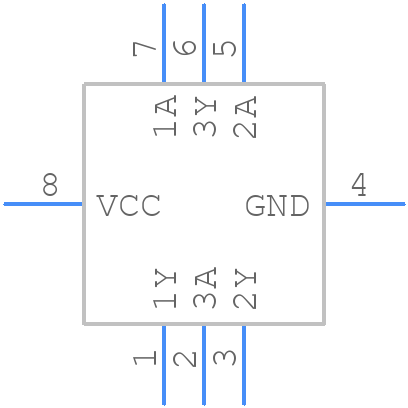

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NC7NZ04L8X - onsemi PCB footprint - Other - Other - NC7NZ04L8X-1
click to zoom
3D Models
NC7NZ04L8X - onsemi  - 3D model - Other - NC7NZ04L8X-1
click to zoom

NC7NZ04L8X Details

  • Manufacturer Part Number:

    NC7NZ04L8X

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    UQFN-8

  • Manufacturer Package Code:

    523AY

  • Country Of Origin:

    Mainland China, Malaysia

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Date Of Intro:

    1997-09-16

  • Manufacturer:

    onsemi

  • YTEOL:

    6.3

  • Family:

    LVC/LCX/Z

  • JESD-30 Code:

    S-XQCC-N8

  • JESD-609 Code:

    e4

  • Length:

    1.6 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    INVERTER

  • Max I(ol):

    0.024 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    3

  • Number of Inputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC8,.06SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    5 ns

  • Propagation Delay (tpd):

    10 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    0.55 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

NC7NZ04L8X Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the NC7NZ04L8X is 1.65V to 5.5V.
  • Yes, the NC7NZ04L8X is compatible with both 3.3V and 5V logic systems, making it a versatile component for various applications.
  • The maximum propagation delay for the NC7NZ04L8X is 3.5ns, ensuring fast signal transmission and minimal latency.
  • Yes, the NC7NZ04L8X is suitable for high-frequency applications, with a maximum toggle frequency of 250MHz.
  • The power consumption of the NC7NZ04L8X is relatively low, with a typical quiescent current of 1μA and a dynamic current of 10mA at 100kHz.
