NC7NZ17L8X - onsemi

Description: Power down high impedance inputs/outputs; Overvoltage tolerant inputs facilitate 5V to 3V translation; Ultra High Speed: tPD 3.6 ns Typ into 50 pF at 5V VCC; MicroPak™ Pb-Free leadless package; Space saving US8 surface mount package; Broad VCC Operating Range; 1.65V to 5.5V; Patented noise/EMI reduction circuitry implemented; High Output Drive: ±24 mA at 3V VCC

Download NC7NZ17L8X Model

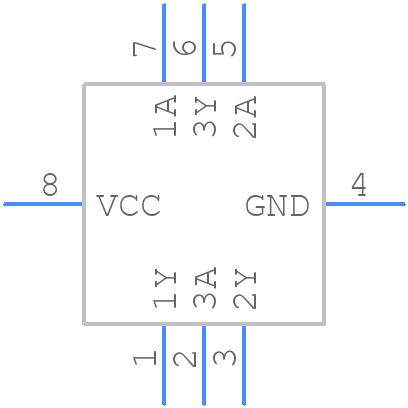

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NC7NZ17L8X - onsemi PCB footprint - Other - Other - NC7NZ17L8X-2
click to zoom
3D Models
NC7NZ17L8X - onsemi  - 3D model - Other - NC7NZ17L8X-2
click to zoom

NC7NZ17L8X Details

  • Manufacturer Part Number:

    NC7NZ17L8X

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    UQFN-8

  • Package Description:

    MICROPAK-8

  • Manufacturer Package Code:

    523AY

  • Country Of Origin:

    Mainland China, Malaysia

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.3

  • Family:

    LVC/LCX/Z

  • JESD-30 Code:

    S-XQCC-N8

  • JESD-609 Code:

    e4

  • Length:

    1.6 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUFFER

  • Max I(ol):

    0.024 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    3

  • Number of Inputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC8,.06SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    7.3 ns

  • Propagation Delay (tpd):

    13.1 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    YES

  • Seated Height-Max:

    0.55 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

NC7NZ17L8X Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the NC7NZ17L8X is 1.65V to 5.5V.
  • To properly power down the NC7NZ17L8X, ensure that the input voltage (VCC) is reduced to 0V or a logic low level, and all input signals are at a logic low level.
  • The maximum frequency of operation for the NC7NZ17L8X is 250 MHz.
  • During power-up and power-down sequences, ensure that all input signals are at a logic low level to prevent unwanted switching activity and minimize power consumption.
  • The recommended termination scheme for the NC7NZ17L8X's outputs is a series resistor termination (SRT) or a parallel resistor termination (PRT) to minimize reflections and ensure signal integrity.
