NC7WP00L8X - onsemi

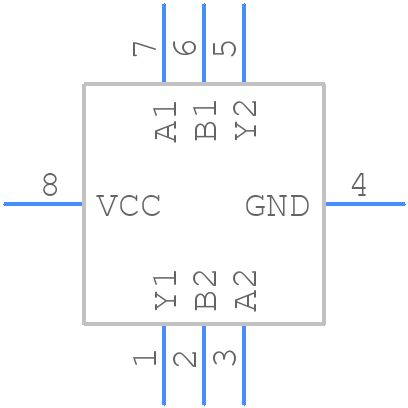

NC7WP00L8X Details

• Manufacturer Part Number:

  NC7WP00L8X

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  UQFN-8

• Package Description:

  UQFN-8

• Manufacturer Package Code:

  523AY

• Country Of Origin:

  Thailand

• HTS Code:

  8542.39.00.60

• Manufacturer:

  onsemi

• YTEOL:

  0

• Family:

  P

• JESD-30 Code:

  S-XDSO-N8

• JESD-609 Code:

  e4

• Length:

  1.6 mm

• Load Capacitance (CL):

  30 pF

• Logic IC Type:

  NAND GATE

• Max I(ol):

  0.0005 A

• Moisture Sensitivity Level:

  1

• Number of Functions:

  2

• Number of Inputs:

  2

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  3-STATE

• Package Body Material:

  UNSPECIFIED

• Package Code:

  VSON

• Package Equivalence Code:

  LCC8,.06SQ,20

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, VERY THIN PROFILE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Power Supply Current-Max (ICC):

  50 mA

• Prop. Delay@Nom-Sup:

  43 ns

• Propagation Delay (tpd):

  43 ns

• Qualification Status:

  Not Qualified

• Schmitt Trigger:

  NO

• Seated Height-Max:

  0.55 mm

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  0.9 V

• Supply Voltage-Nom (Vsup):

  1.2 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  1.6 mm
