NC7WZ16L6X - onsemi

Description: Buffers & Line Drivers Dual Buffer

Download NC7WZ16L6X Model

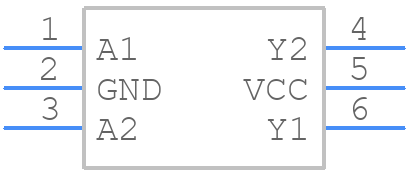

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NC7WZ16L6X - onsemi PCB footprint - Other - Other - NC7WZ16L6X-3
click to zoom
3D Models
NC7WZ16L6X - onsemi  - 3D model - Other - NC7WZ16L6X-3
click to zoom

NC7WZ16L6X Details

  • Manufacturer Part Number:

    NC7WZ16L6X

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    MICROPAK-6

  • Manufacturer Package Code:

    127EB

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Malaysia

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.5

  • Family:

    LVC/LCX/Z

  • JESD-30 Code:

    R-PDSO-N6

  • JESD-609 Code:

    e4

  • Length:

    1.45 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUFFER

  • Max I(ol):

    0.032 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Inputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC6,.04,14

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    100 mA

  • Prop. Delay@Nom-Sup:

    8.8 ns

  • Propagation Delay (tpd):

    10.6 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    0.55 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD SILVER

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1 mm

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

NC7WZ16L6X Overview

Use the download button to access the NC7WZ16L6X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NC7WZ, or try a keyword search, such as Gates
