Part Image

NCD2400MTR - LITTELFUSE

Description: WIDE CAPACITANCE RANGE, NON-VOLA

Download NCD2400MTR Model

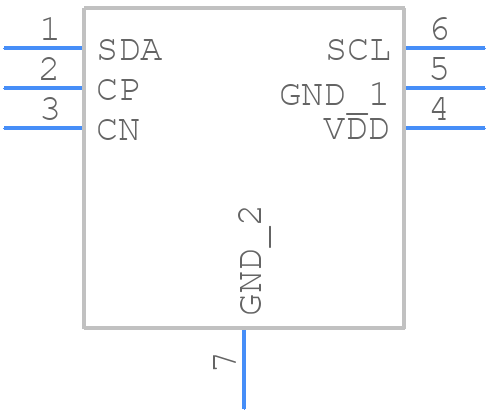

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCD2400MTR - LITTELFUSE PCB footprint - Small Outline No-lead - Small Outline No-lead - NCD2400MTR
click to zoom
3D Models
NCD2400MTR - LITTELFUSE  - 3D model - Small Outline No-lead - NCD2400MTR
click to zoom

NCD2400MTR Details

  • Manufacturer Part Number:

    NCD2400MTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Littelfuse Inc

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Time@Peak Reflow Temperature-Max (s):

    30

NCD2400MTR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad with a minimum size of 20mm x 20mm, and ensuring that the thermal pad is connected to a large copper area on the PCB to dissipate heat efficiently.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's current rating according to the temperature derating curve provided in the datasheet, and to ensure good airflow around the device to prevent thermal buildup.
  • The recommended soldering profile for the NCD2400MTR involves a peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C, and a ramp-up rate of 3°C/second maximum.
  • Yes, the NCD2400MTR is designed to withstand high-vibration environments, but it is recommended to follow proper mounting and soldering techniques to ensure reliable operation. Additionally, it is recommended to perform vibration testing to ensure the device meets the specific requirements of the application.
  • To troubleshoot issues with the device, it is recommended to check the device's pinout and connections, ensure proper soldering and mounting, and verify that the device is being operated within its recommended specifications. Additionally, it may be helpful to use thermal imaging or other diagnostic tools to identify the root cause of the issue.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCD2400MTR Overview

Use the download button to access the NCD2400MTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCD24, or try a keyword search, such as Other Signal Circuits
