NCD57001DWR2G - onsemi

Description: High Current Output(+4/-6 A) at IGBT Miller Plateau Voltages; Short Propagation Delays with Accurate Matching; DESAT with Soft Turn Off; Active Miller Clamp and Negative Gate Voltage; High Transient & Electromagnetic Immunity; 5 kV Galvanic Isolation

Download NCD57001DWR2G Model
Schematic

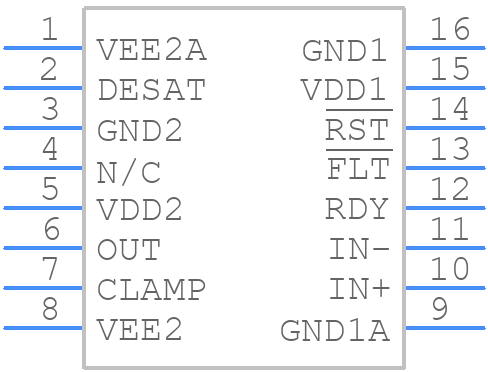

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCD57001DWR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC−16 WB CASE 751G−03
click to zoom
3D Models
NCD57001DWR2G - onsemi  - 3D model - Small Outline Packages - SOIC−16 WB CASE 751G−03
click to zoom

NCD57001DWR2G Details

  • Manufacturer Part Number:

    NCD57001DWR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-16W

  • Package Description:

    SOIC-16

  • Manufacturer Package Code:

    751G-03

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • High Side Driver:

    NO

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    7.8 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    6 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    24 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Gold/Palladium (Ni/Au/Pd)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.09 µs

  • Turn-on Time:

    0.09 µs

  • Width:

    7.5 mm
