NCD5701ADR2G - onsemi

Description: High Current Output (+4.0/-6.0 A) at IGBT Miller Plateau voltages; Low VOH and VOL; Active Miller Clamp (NCD5701A only); DESAT Protection with Programmable Delay

Download NCD5701ADR2G Model

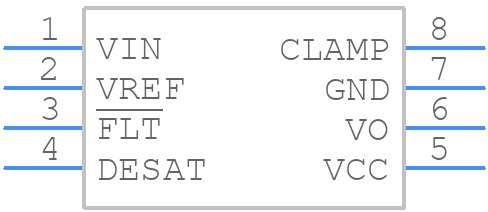

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCD5701ADR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom
3D Models
NCD5701ADR2G - onsemi  - 3D model - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom

NCD5701ADR2G Details

  • Manufacturer Part Number:

    NCD5701ADR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    23 Weeks

  • Date Of Intro:

    2016-08-17

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    7.8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    6000 mA

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.075 µs

  • Turn-on Time:

    0.075 µs

  • Width:

    4 mm

NCD5701ADR2G Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the package to improve thermal performance. A minimum of 2oz copper thickness and a thermal relief pattern are recommended to ensure good heat dissipation.
  • Ensure that the device is operated within the recommended operating temperature range (-40°C to 150°C). Use a heat sink or thermal interface material to improve heat dissipation. Avoid exceeding the maximum junction temperature (Tj) of 150°C.
  • A 10uF to 22uF X5R or X7R ceramic capacitor is recommended for input decoupling. The capacitor should be placed as close to the device as possible to minimize parasitic inductance.
  • Use a shielded inductor, keep the switching node (SW) away from sensitive nodes, and use a common-mode choke to reduce EMI. Ensure good PCB layout practices, such as minimizing loop areas and using a solid ground plane.
  • A 10uF to 22uF X5R or X7R ceramic capacitor is recommended for output filtering. The capacitor should be placed as close to the output pin as possible to minimize parasitic inductance.
