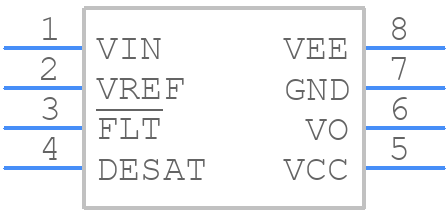

NCD5703BDR2G - onsemi

NCD5703BDR2G Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  The recommended PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal traces as short and wide as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
• How do I ensure reliable operation at high temperatures?
  To ensure reliable operation at high temperatures, it's essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and ensure good airflow around the device. Additionally, consider derating the device's power dissipation and voltage ratings at high temperatures.
• What are the implications of the device's limited SOA (Safe Operating Area) on my design?
  The limited SOA of the NCD5703BDR2G means that the device may not be suitable for applications with high voltage and high current simultaneously. Ensure that your design operates within the specified SOA to prevent device damage or failure.
• How do I protect the device from electrical overstress (EOS) and electrostatic discharge (ESD)?
  To protect the device from EOS and ESD, use proper handling and storage procedures, implement ESD protection circuits, and ensure that the device is properly soldered and connected to the PCB. Additionally, consider using TVS diodes or other protection devices to absorb voltage transients.
• What are the trade-offs between using a heat sink and a thermal interface material (TIM)?
  Using a heat sink provides better thermal performance but increases the overall size and cost of the design. A thermal interface material (TIM) can be used to fill the gap between the device and the heat sink, improving thermal performance without increasing size. However, the TIM may add additional cost and complexity to the design.
