NCD57091CDWR2G - onsemi

Description: High Peak Output Current (+6.5 A/-6.5 A); Short Propagation Delays with Accurate Matching; High Transient & Electromagnetic Immunity; 5 KVrms On-Chip Galvanic Isolation; Wide Bias Voltage Ranges and Input Voltage Range; Active Miller Clamp or Negative Gate Voltage or Split Outputs

Download NCD57091CDWR2G Model

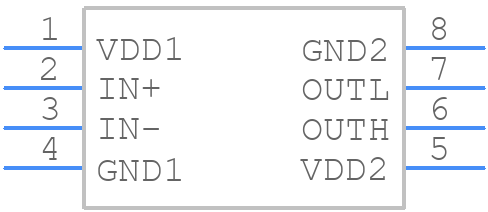

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCD57091CDWR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC8 WB
click to zoom
3D Models
NCD57091CDWR2G - onsemi  - 3D model - Small Outline Packages - SOIC8 WB
click to zoom

NCD57091CDWR2G Details

  • Manufacturer Part Number:

    NCD57091CDWR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC8 WB

  • Package Description:

    SOIC-8

  • Manufacturer Package Code:

    751EW

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    8.38

  • High Side Driver:

    YES

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    7.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    6.5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    2.4 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    30 V

  • Supply Voltage1-Min:

    8.7 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    0.09 µs

  • Turn-on Time:

    0.09 µs

  • Width:

    5.85 mm
