NCD57100DWR2G - onsemi

Description: High Current Output(±7 A) at Miller Plateau Voltages; Short Propagation Delays with Accurate Matching; DESAT with Soft Turn Off; Active Miller Clamp and Negative Gate Voltage; High Transient & Electromagnetic Immunity; 5 kV Galvanic Isolation

Download NCD57100DWR2G Model

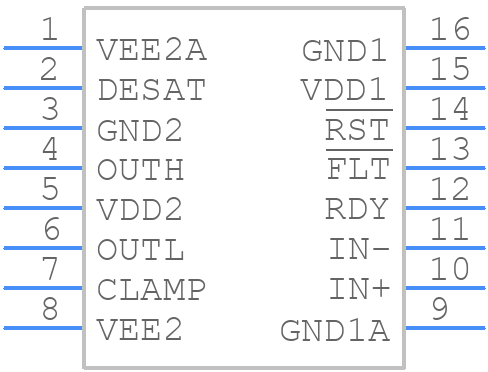

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCD57100DWR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC−16 WBA
click to zoom
3D Models
NCD57100DWR2G - onsemi  - 3D model - Small Outline Packages - SOIC−16 WBA
click to zoom

NCD57100DWR2G Details

  • Manufacturer Part Number:

    NCD57100DWR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-16W

  • Package Description:

    SOIC-16

  • Manufacturer Package Code:

    751G-03

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    7.8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.4 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    32 V

  • Supply Voltage1-Min:

    11.7 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.09 µs

  • Turn-on Time:

    0.09 µs

  • Width:

    7.5 mm
