Description:High Peak Output Current (±6.5 A, ±3.5 A); 2.5 or 5 kVrms Galvanic Isolation from Input to each Output and 1.5 kVrms Differential Voltage between Output Channels; Tight UVLO Thresholds on all Power Supplies; 3.3 V, 5 V, and 15 V Logic Input; Short Propagation Delays with Accurate Matching; Configurable as a Dual Low−Side or Dual High−Side or Half−Bridge Driver; Programmable Overlap or Dead Time control Programmable Overlap or Dead Time control; Disable Pin to Turn Off Outputs for Power Sequencing; ANB Funct
A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, ensure good thermal design, and consider using a heat sink if necessary. Additionally, consider using a thermistor or thermocouple to monitor the temperature and take corrective action if it exceeds the recommended limit.
The NCD57252DWR2G has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-safe environment.
Yes, the NCD57252DWR2G is suitable for high-reliability and automotive applications. However, it's essential to follow the recommended operating conditions, and to ensure that the device is properly qualified and validated for the specific application.
For PCB assembly, follow standard SMT assembly procedures, and ensure that the device is properly aligned and soldered. For rework, use a low-temperature soldering iron and a solder wick to remove excess solder. Avoid using high-temperature soldering irons or excessive force, which can damage the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCD57252DWR2G Overview

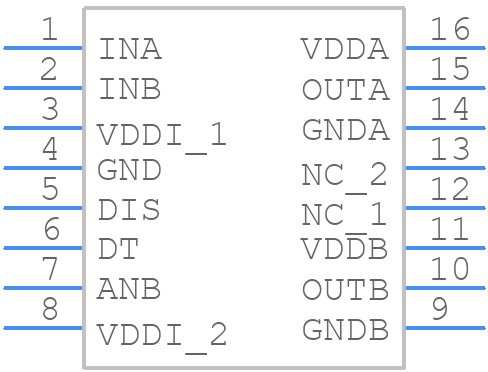

Use the download button to access the NCD57252DWR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCD57,
or try a keyword search, such as MOSFET Drivers
