NCD83591MNTXG - onsemi

Description: 60V 3-Phase Gate Driver with an absMax of 70V; Embedded current sense amplifier; externally configurable with 10MHz GBW; Integrated Charge Pump for high side gate drive; Externally configurable 5 to 250mA constant current drive of Power FET

Download NCD83591MNTXG Model

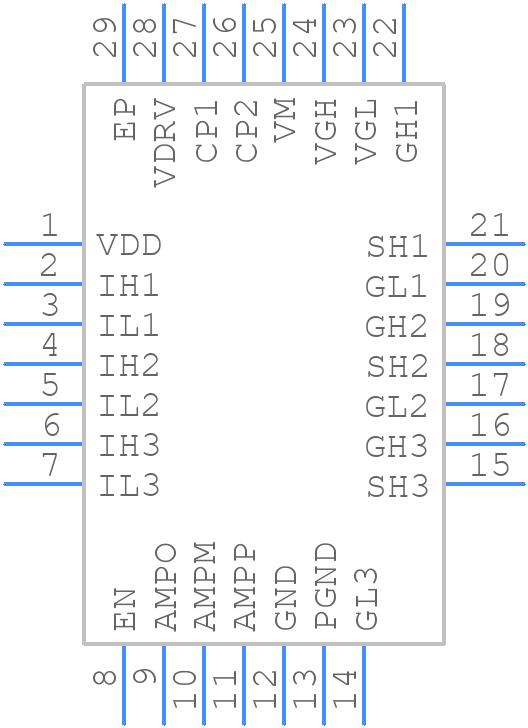

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCD83591MNTXG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN28 4x4, 0.4P CASE 485GF ISSUE O
click to zoom
3D Models
NCD83591MNTXG - onsemi  - 3D model - Quad Flat No-Lead - QFN28 4x4, 0.4P CASE 485GF ISSUE O
click to zoom

NCD83591MNTXG Details

  • Manufacturer Part Number:

    NCD83591MNTXG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN28 4x4, 0.4P

  • Package Description:

    QFN-28

  • Manufacturer Package Code:

    485GF

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • High Side Driver:

    YES

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    S-XQCC-N28

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.16SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    5.7 mA

  • Supply Voltage-Max:

    60 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.1 µs

  • Turn-on Time:

    0.1 µs

  • Width:

    4 mm

NCD83591MNTXG Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal path as short as possible. It's also recommended to use a thermal pad on the bottom of the device.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal management system, and consider derating the device's power dissipation. Additionally, ensure that the device is properly soldered and the PCB is designed to minimize thermal stress.
  • Exceeding the maximum junction temperature (Tj) rating can lead to reduced device lifespan, increased thermal resistance, and potentially cause the device to fail. It's crucial to ensure that the device operates within the recommended temperature range to maintain its reliability and performance.
  • To troubleshoot OCP-related issues, start by verifying that the device is properly configured and that the current sense resistors are correctly sized. Check for any signs of overheating, and ensure that the device is not operating in a high-impedance state. If the issue persists, consult the datasheet and application notes for further guidance.
  • When using the NCD83591MNTXG in a high-reliability or safety-critical application, it's essential to follow the recommended design and layout guidelines, ensure proper thermal management, and consider implementing redundant or fault-tolerant designs. Additionally, consult the device's reliability and quality data, and perform thorough testing and validation to ensure the device meets the application's requirements.
