- Part Number NCD9812
- Manufacturer onsemi
- Pin Count 65
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead

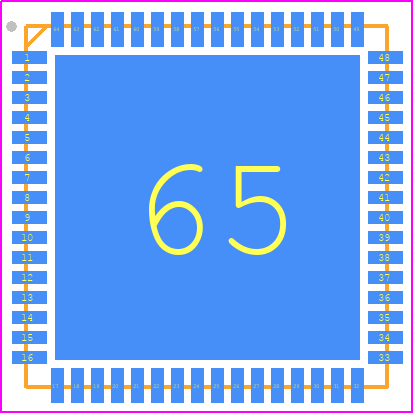

- Footprint Name Quad Flat No-Lead - QFN64 9x9, 0.5P
- Released Date Sep 19, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
NCD9812 Details
-
Manufacturer Part Number:
NCD9812
-
Manufacturer:
onsemi
Trust Checks
Community Provided
System Verified
Community Approved
NCD9812 Overview
Use the download button to access the NCD9812 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCD98,
or try a keyword search, such as Other Signal Circuits
