NCD9830DBR2G - onsemi

Description: ADC, 8-Bit, 8-Chanel, with I2C Interface

Download NCD9830DBR2G Model

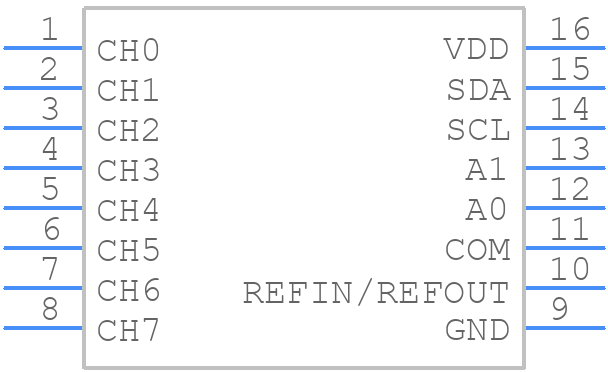

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCD9830DBR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - NCD9830DBR2G
click to zoom
3D Models
NCD9830DBR2G - onsemi  - 3D model - Small Outline Packages - NCD9830DBR2G
click to zoom

NCD9830DBR2G Details

  • Manufacturer Part Number:

    NCD9830DBR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP-16

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    948F-01

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    onsemi

  • YTEOL:

    1

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    -2.5 V

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Linearity Error-Max (EL):

    0.195%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY

  • Output Format:

    PARALLEL, 8 BITS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Nom:

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

NCD9830DBR2G Frequently Asked Questions (FAQs)

  • A recommended PCB layout for the NCD9830DBR2G involves using a thermal pad on the bottom of the package, connecting it to a large copper area on the PCB, and using thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended.
  • To ensure proper biasing, connect the VCC pin to a stable 3.3V or 5V power supply, and the GND pin to a solid ground plane. Ensure that the input voltage is within the recommended operating range (2.7V to 5.5V) and that the output is properly terminated.
  • The maximum current rating for the NCD9830DBR2G is 1.5A per channel, with a total current limit of 3A for both channels combined.
  • To protect the NCD9830DBR2G from overvoltage and undervoltage conditions, use a voltage regulator or a voltage supervisor to ensure the input voltage remains within the recommended operating range. Additionally, consider using overvoltage protection (OVP) and undervoltage protection (UVP) circuits.
  • To protect the NCD9830DBR2G from electrostatic discharge (ESD), use a human body model (HBM) ESD protection circuit with a minimum of 2kV rating. Additionally, ensure that the PCB design includes ESD protection diodes and resistors.
