NCID9210 - onsemi

Description: The only Digital Isolator available that includes insulation reliability that matches optocouplers; DTI (Distance Through Insulation): ≥ 0.5 mm; Maximum Working Insulation Voltage: 2000 Vpeak; Specifications Guaranteed Over 2.5 V to 5.5 V Supply Voltage and −40°C to 125°C Extended Temperature Range; High Speed: ♦ 50 Mbit/s Data Rate (NRZ) ♦ 25 ns Maximum Propagation Delay ♦ 10 ns Maximum Pulse Width Distortion; No insulation material wear out over time up to 1500V, no LED degradation, consistent performance

Download NCID9210 Model

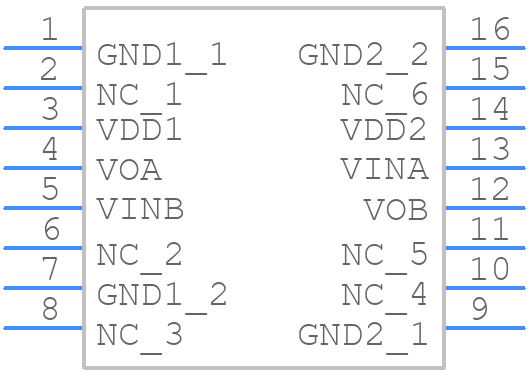

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCID9210 - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC16 W CASE 751EN ISSUE A
click to zoom
3D Models
NCID9210 - onsemi  - 3D model - Small Outline Packages - SOIC16 W CASE 751EN ISSUE A
click to zoom

NCID9210 Details

  • Manufacturer Part Number:

    NCID9210

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC16 W

  • Package Description:

    SOIC-16

  • Manufacturer Package Code:

    751EN

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    onsemi

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    3 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.5 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm
